MICROFLAME TORCH

also known as a Hand Torch, Brazing Torch, Hand Welder, Miniature Welder

The prop used in the movie appears to be a un-altered Microflame Torch.

As seen in Star Wars: A New Hope 1977

  • Used to weld the Restraining Bolt onto R2-D2 by a Jawa just before R2 is sucked up into the Sandcrawler.

  • Used by Luke Skywalker in Obi-Wans hutt when making repairs on C3-P0- after the Tusken Raider fiasco

  • Micro gas cylinder used as part of Han Solos belt

This web page is a culmination of my research regarding the screen-used hand torch in Star Wars: A New Hope. Be advised the content here-in is based on my own research and is not guaranteed to be 100% accurate.

This research adventure started because I 3-D printed a torch I found online for my Jawa prop/costume and wanted to make accurate text for it because I didn’t like the way it looked without it. I really didn’t think it looked like a Model-B torch as I saw identified in other places so identifying the model led me into a rabbit-hole and I eventually just did as much research as I could on it. Don’t judge me lol

MODEL IDENTIFICATION COMPARISON

Gold metal Microflame Torch. Without “Model B” markings, narrows it down to 2 models. The timeline is also off for Model B torches from my research, as it’s first appearance is in the 1983 RadioShack catalog.

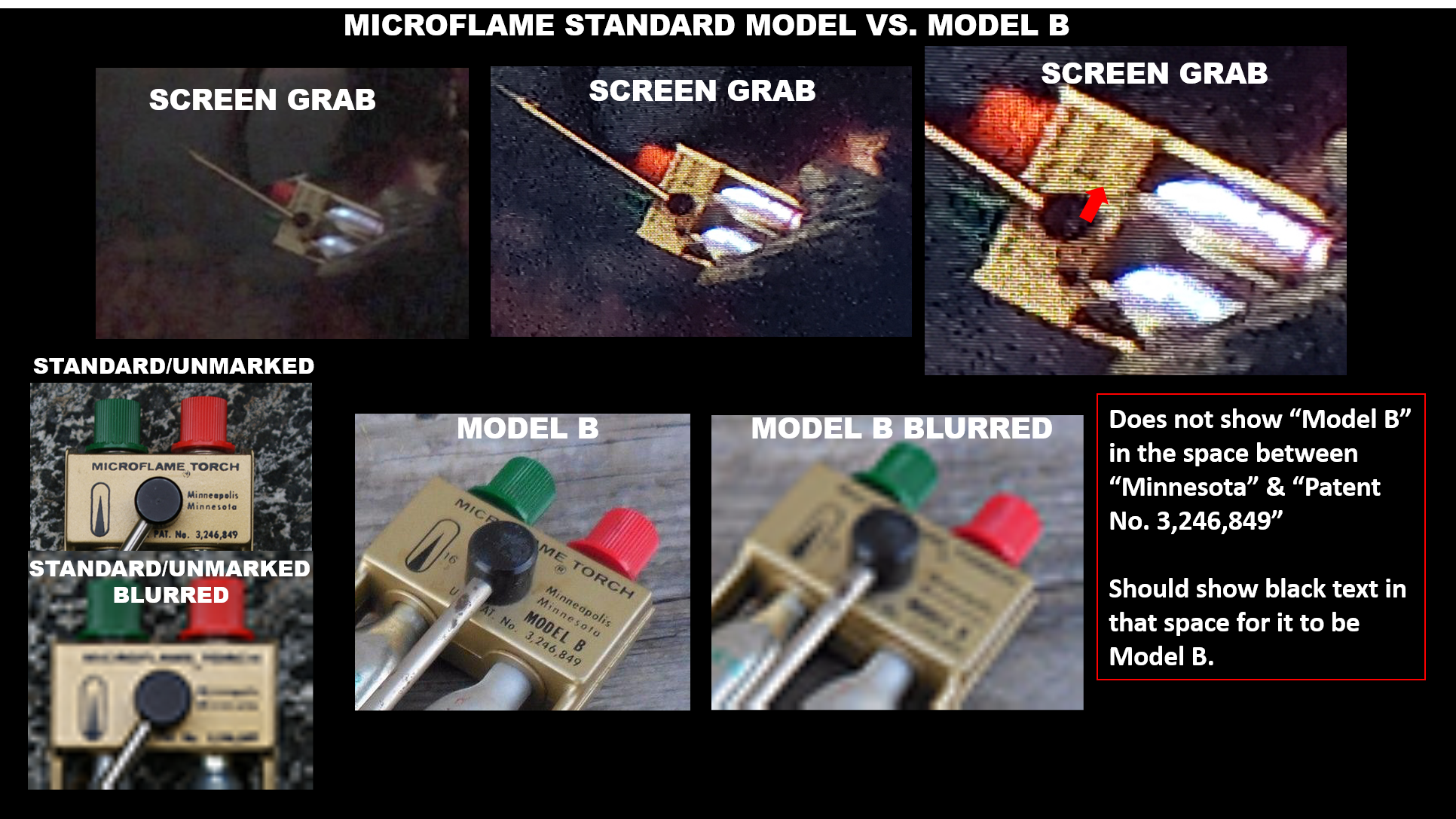

Microflame Miniature Gas Torch Standard/Unmarked Model VS Model B


MICROFLAME IMAGES

Standard Model 1974-1976

Microflame Torch 1974-1976

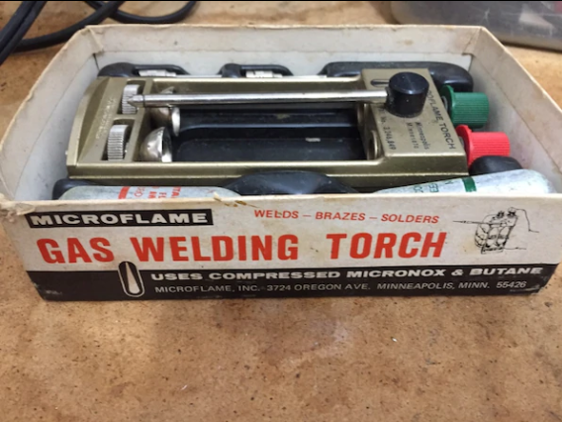

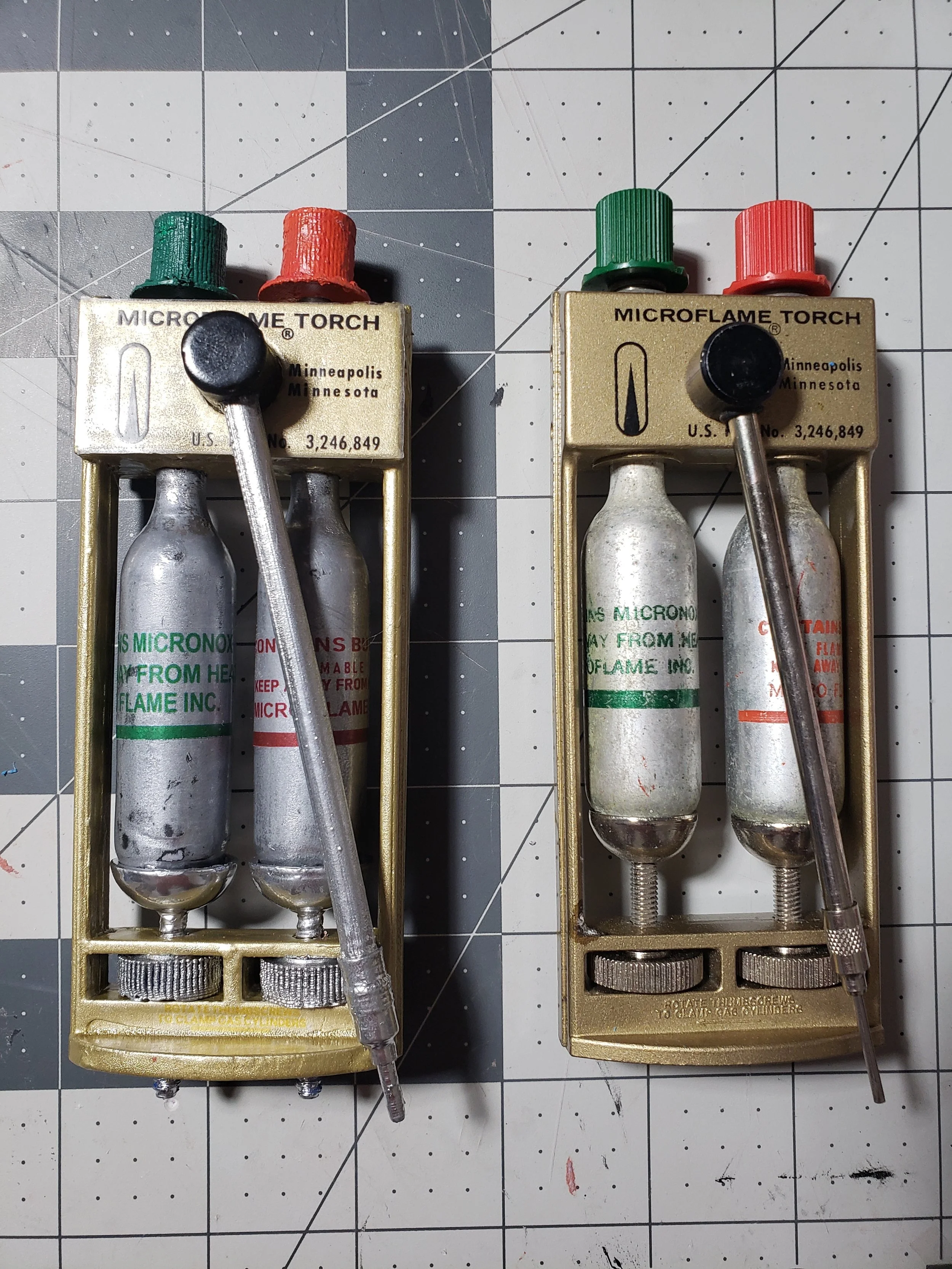

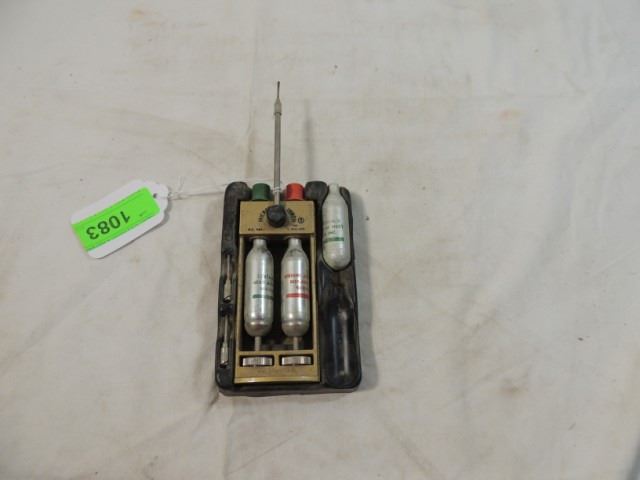

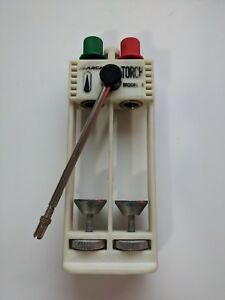

Purchased an actual Vintage Micro Welder based on my guess of the model

Microflame Torch 1974-1976

Reference Pictures Found Online

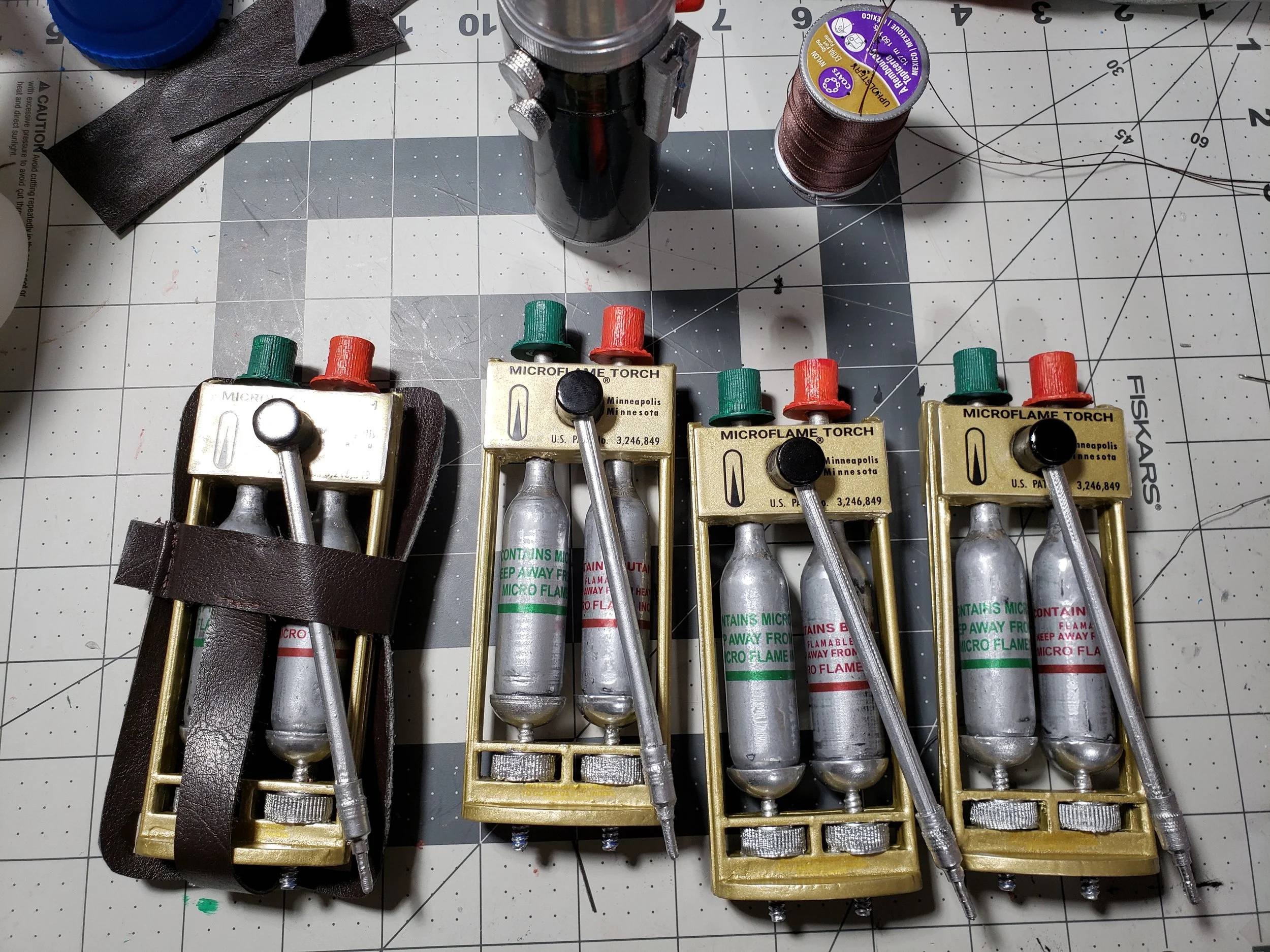

Microflame Torch 1974-1976 Replica Build Photos

STL Files Rescaled for accuracy:

  • Top & Bottom frame scaled to 84%

  • Gas Canister scaled to 92 %

  • Canister cups scaled to 90%

  • Top Knobs scaled to 90%

  • Bottom Wheels scaled to 84%

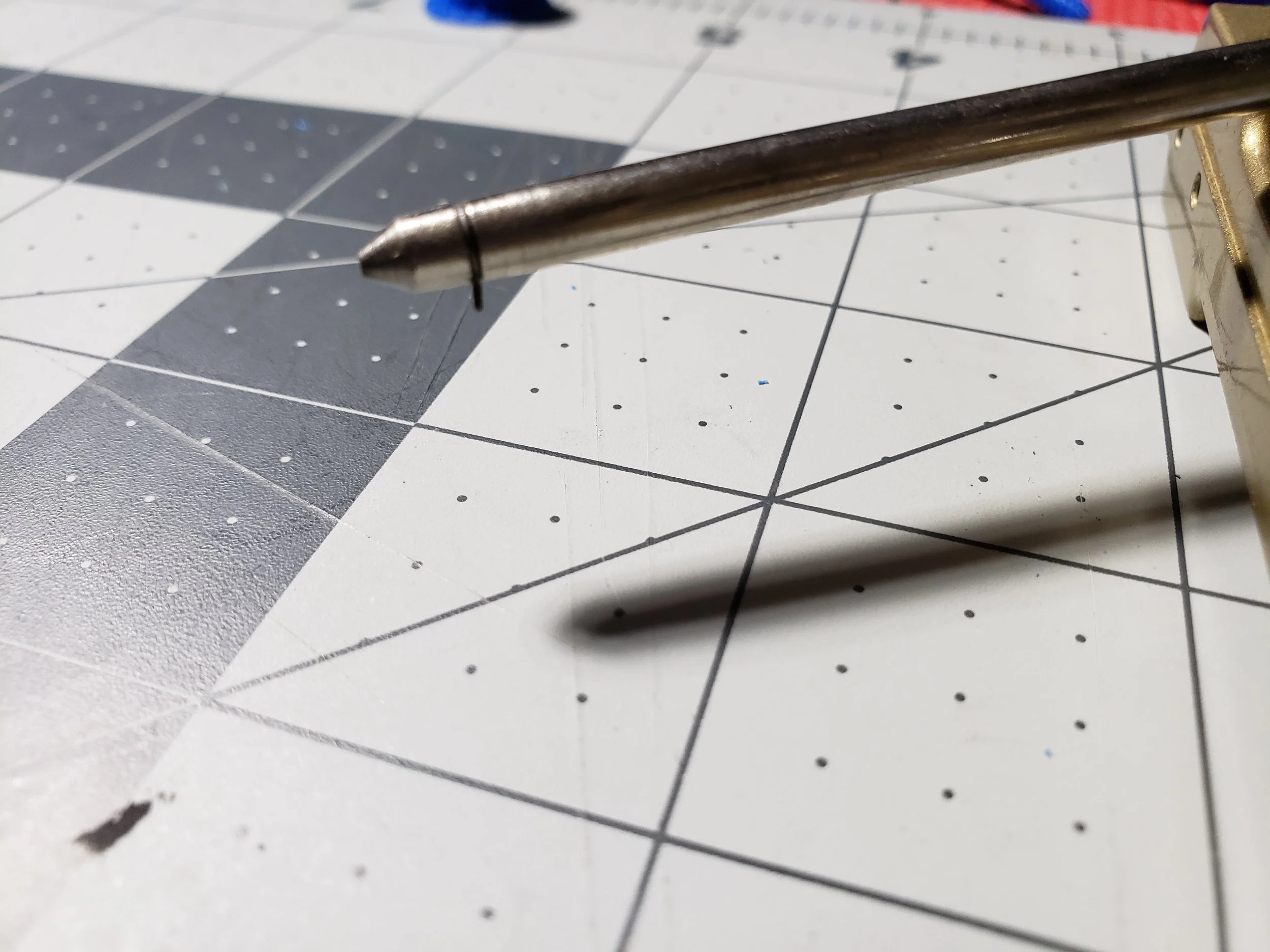

  • Welder Arm & Tip scaled to 84%

  • Top Welder Arm Knob 84%


Microflame Torch 1974-1976 Details Summary

As seen in Star Wars: A New Hope

Be Advised: The following determination is based on my own personal research for costuming/fan purposes, which may or may not be correctly identified :)

  • BRAND: Microflame Torch

  • MODEL/VERSION: Standard/Unknown Labeled 4400 on a kit box

  • PART/ITEM #: 1000 (from box)

  • MANUFACTURE YEAR: 1974-1976 (RadioShack catalog)

  • MARKINGS/NOTES:

    • Front

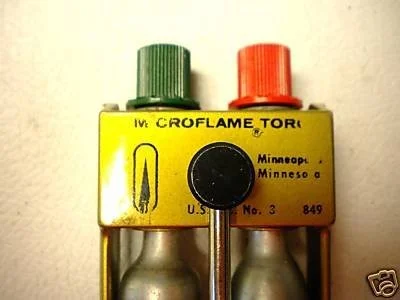

      • MICROFLAME TORCH Minneapolis Minnesota U.S. Pat. No 3,246,849

      • Raised Text at bottom: ROTATE THUMBSCREWS TO CLAMP GAS CYLINDERS with arrow pointing left

    • Back

      • Raised Text at bottom: ROTATE THUMBSCREWS TO CLAMP GAS CYLINDERS with arrow pointing left

    • Top

      • Knobs

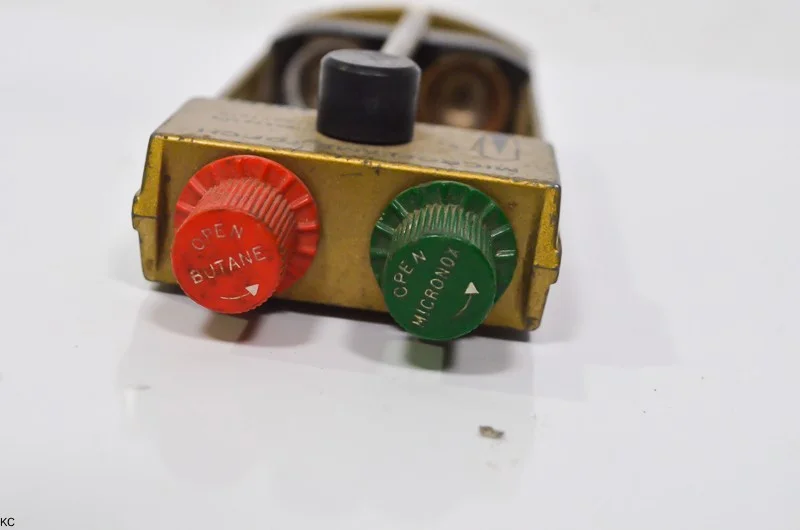

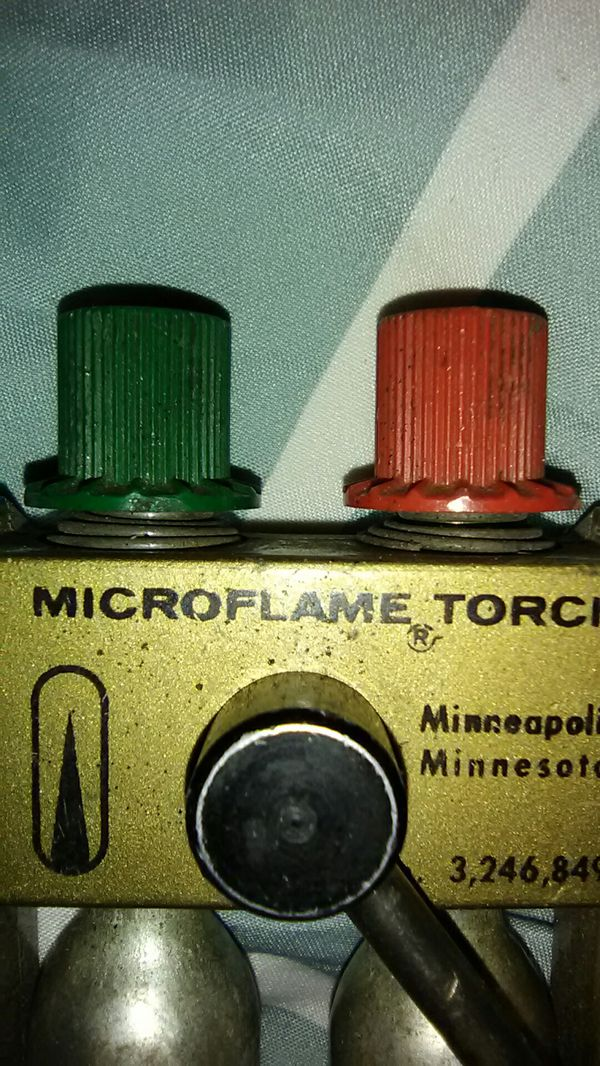

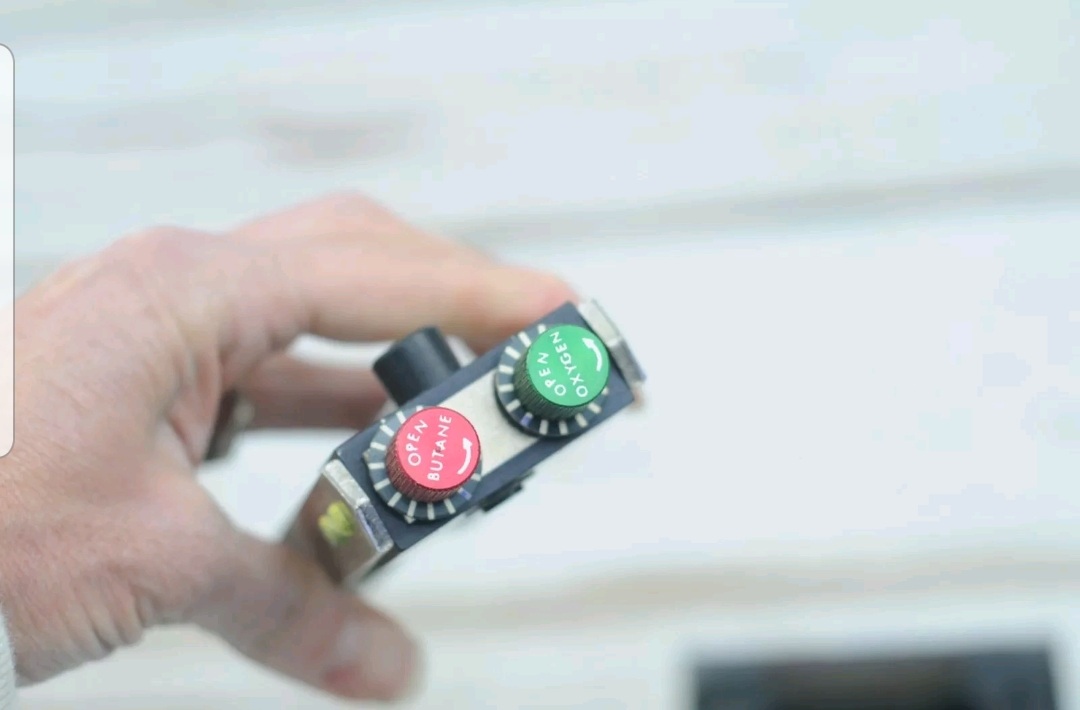

        • Red Knob at right with white text- “OPEN BUTANE” with curved arrow

        • Green Knob at left with white text- “OPEN MICRONOX” with curved arrow

    • Sides

      • No markings

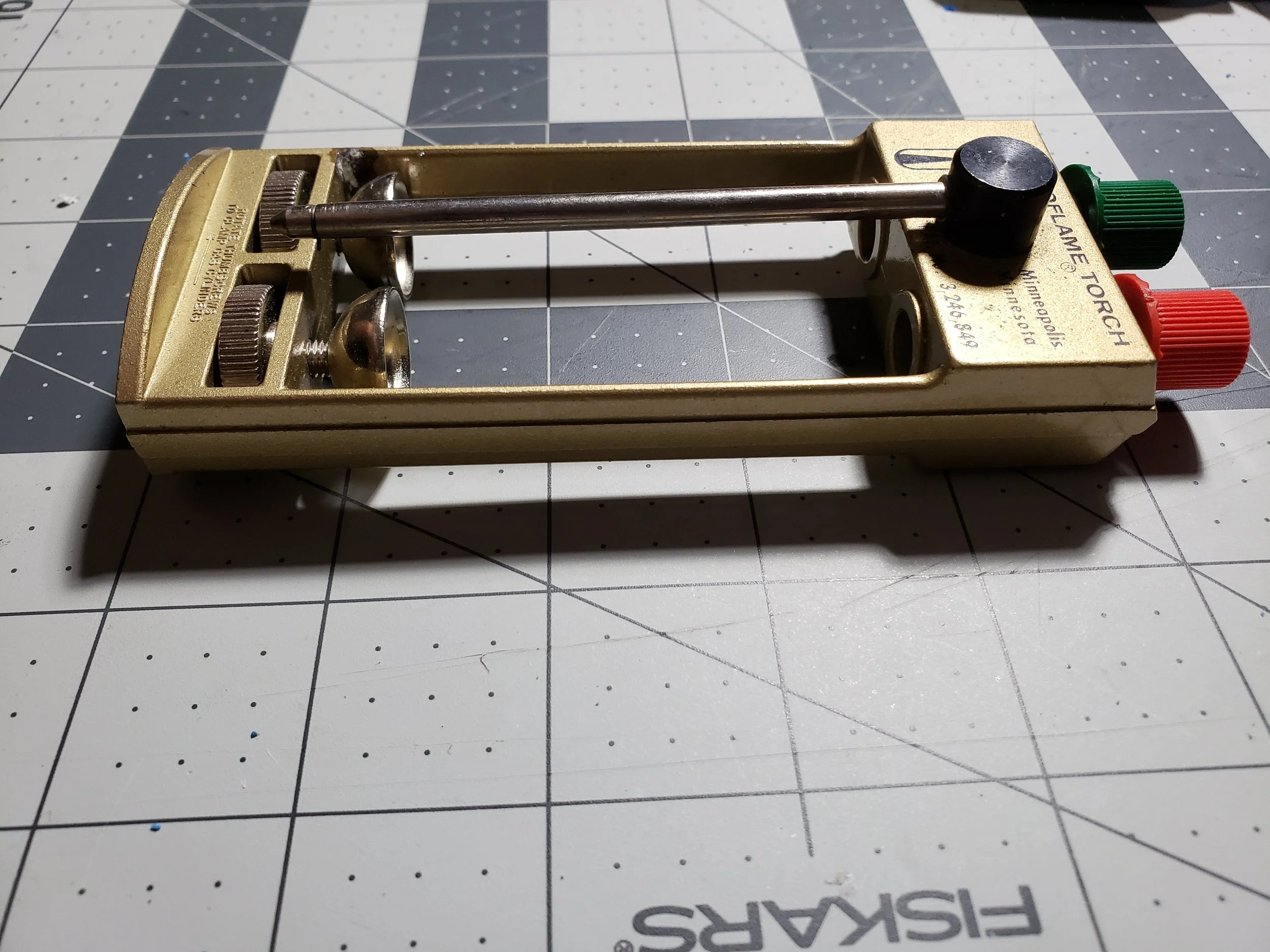

      • Gap separating front piece from back piece

      • Left side has 2 small holes near top

    • Bottom

      • No markings

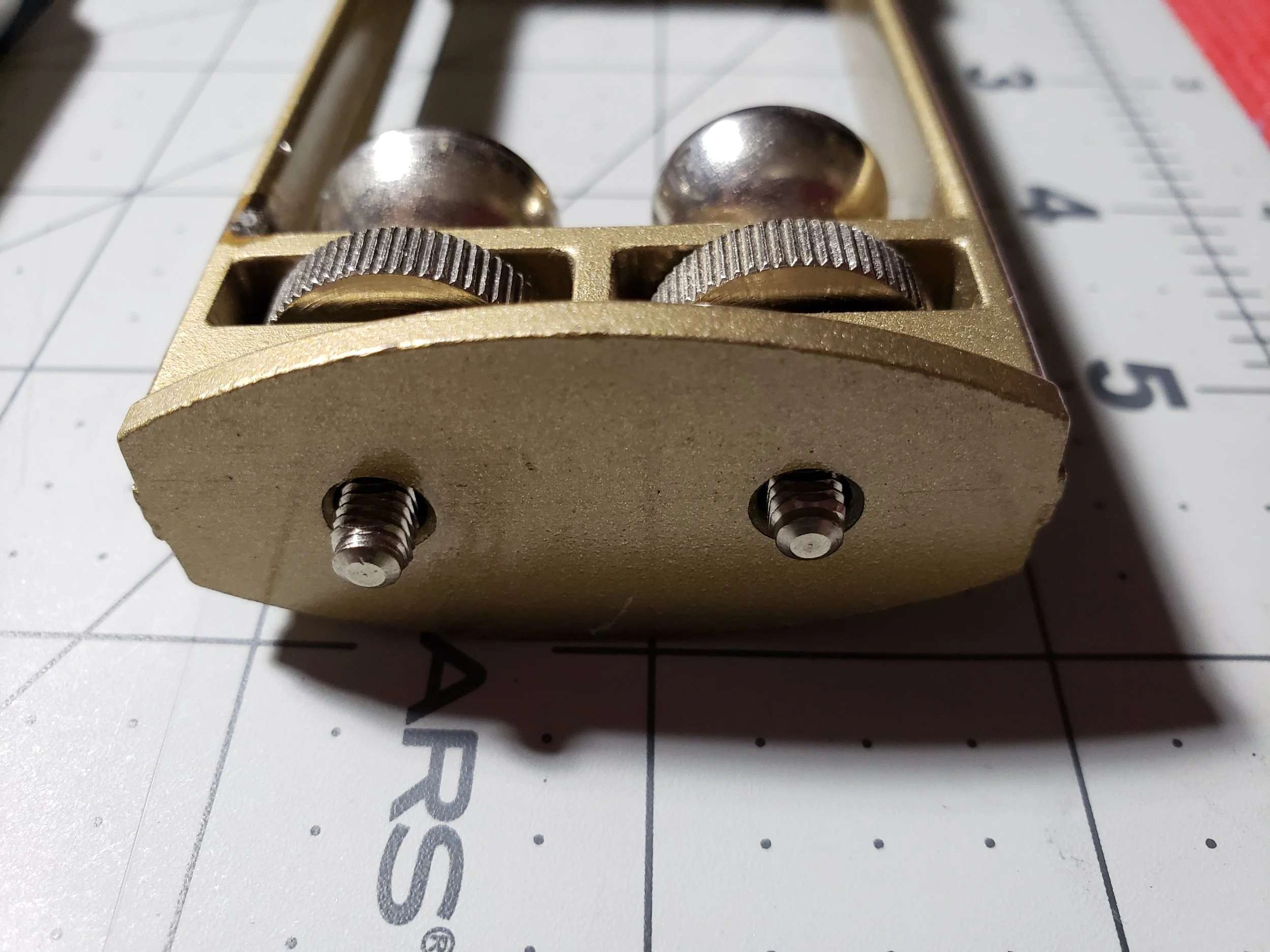

      • 2 holes for canister adjuster screws to extend through

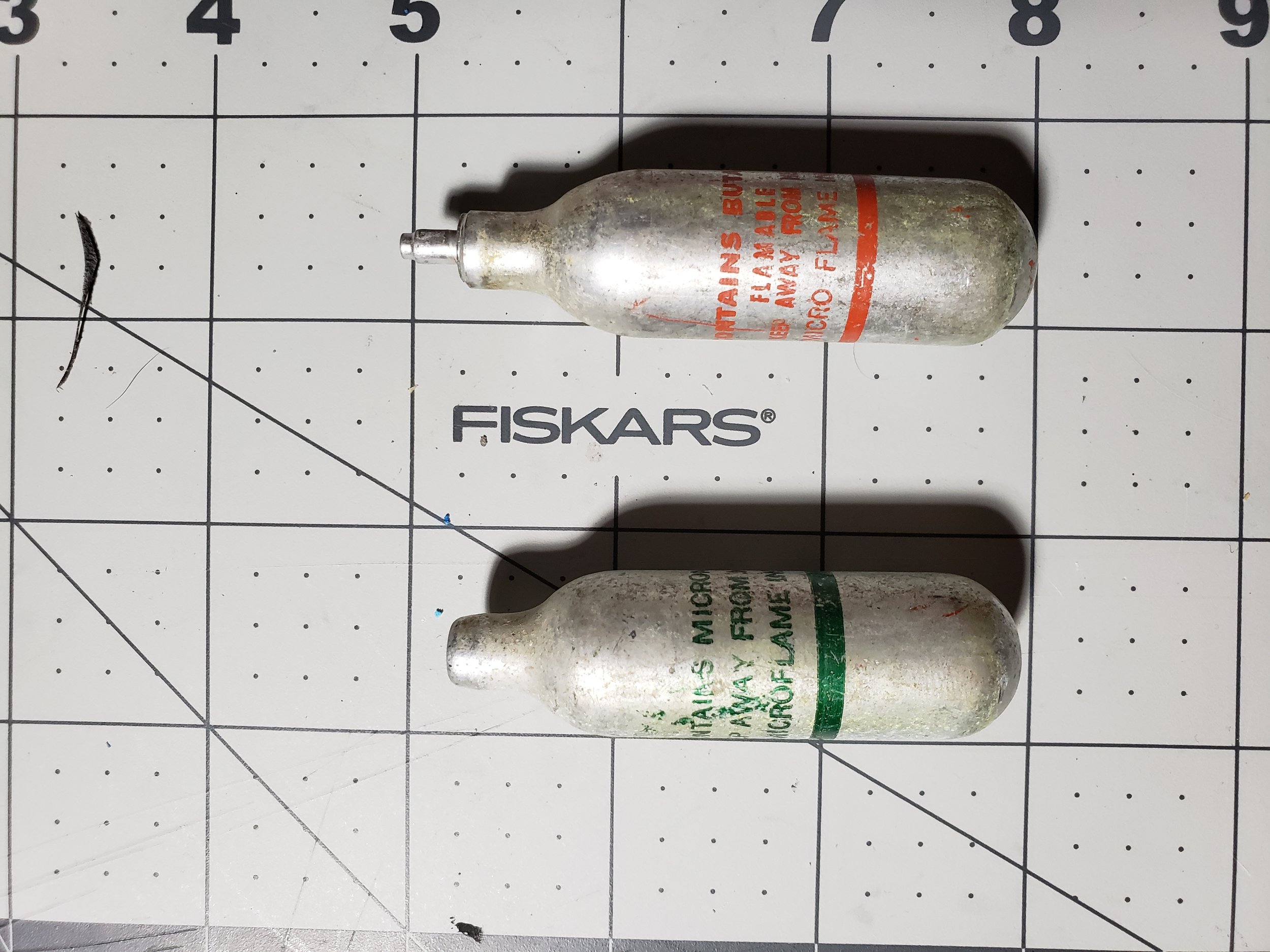

GAS CANISTERS

Canister text version determination based on what might have been sold at the time of the model of Torch

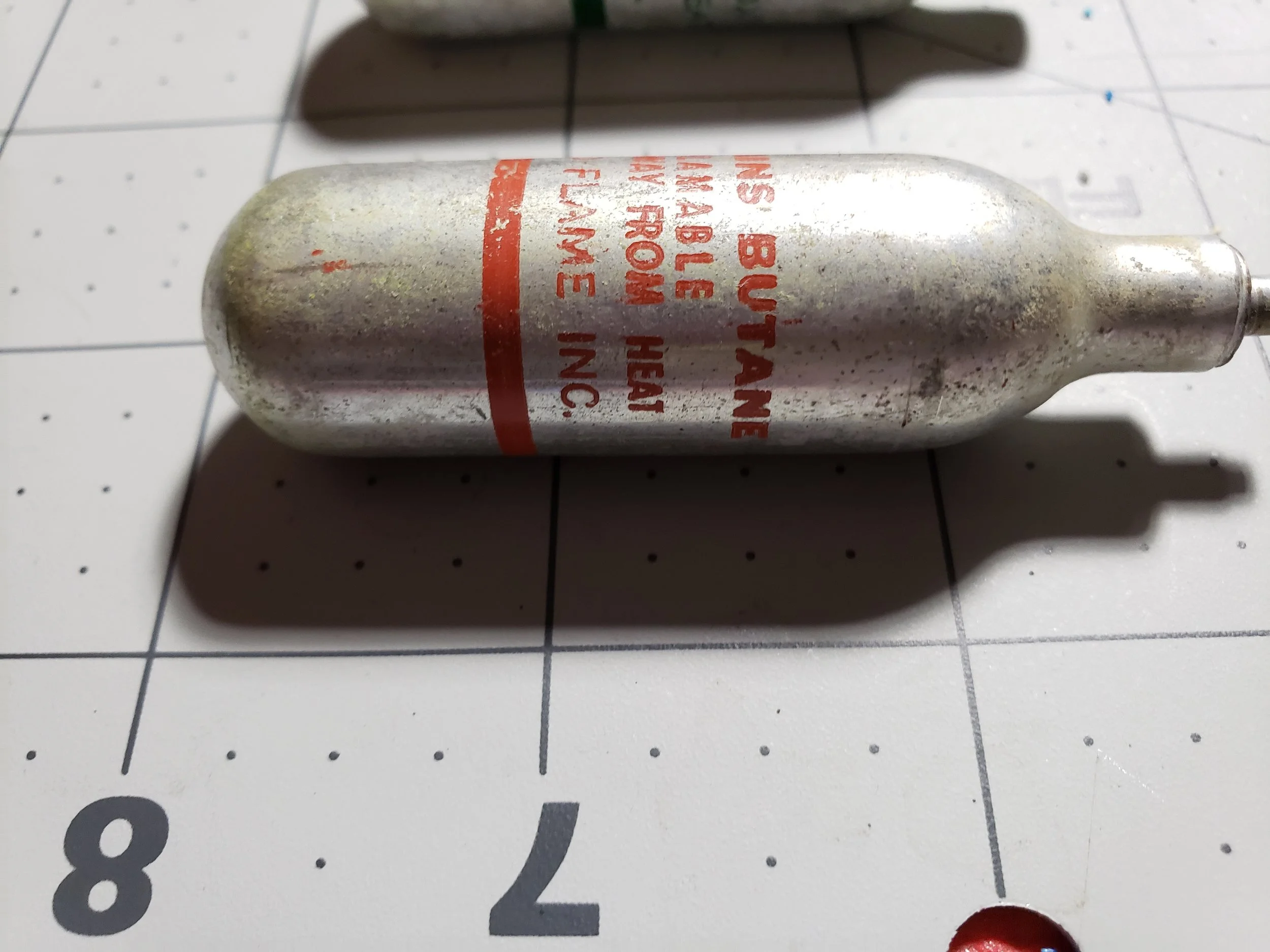

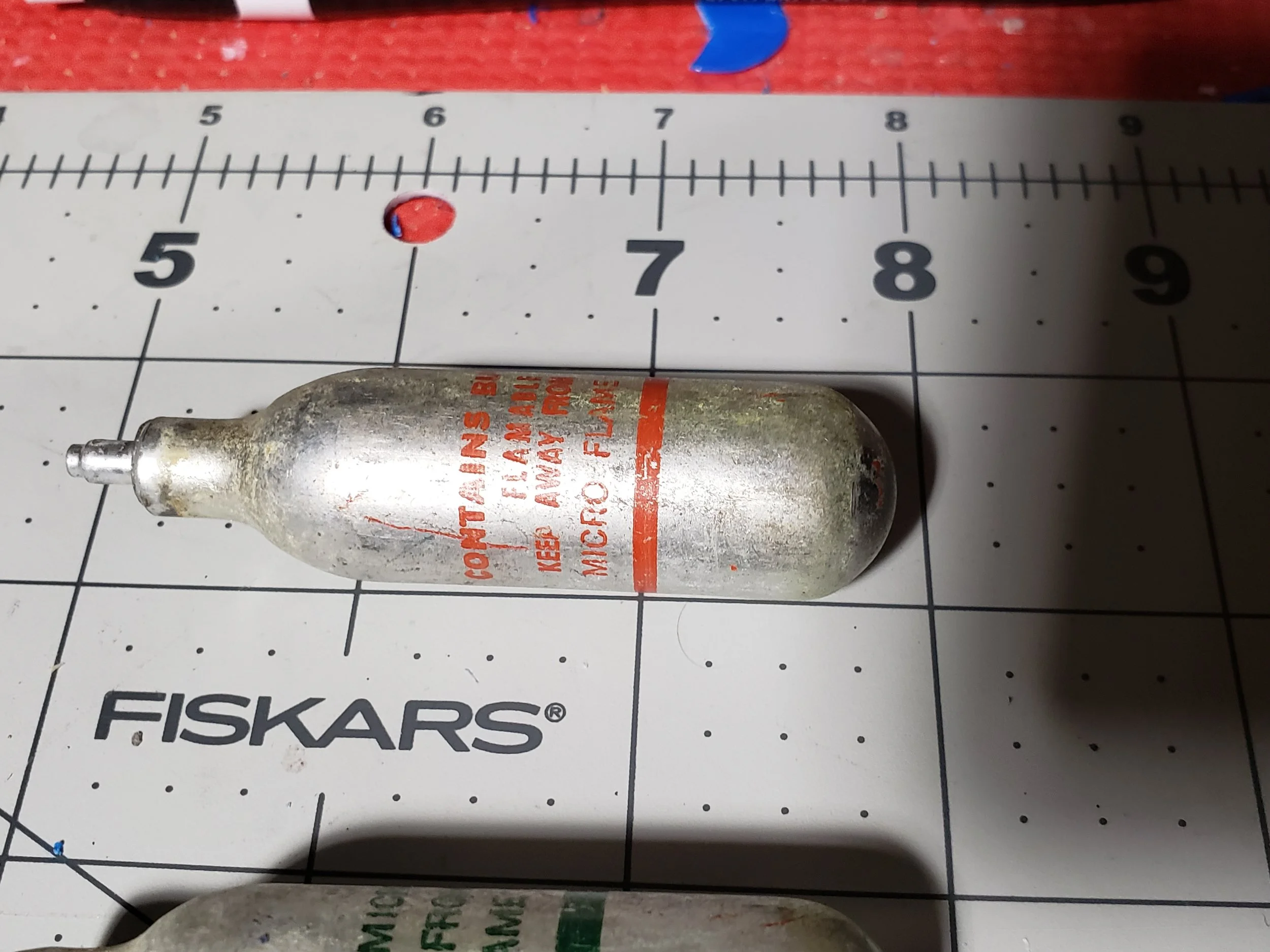

BUTANE CANISTER- RED

  • Red Text:

    • Contains Butane

    • Flameable

    • Keep Away From Heat

    • Micro Flame Inc.

    • Solid red line

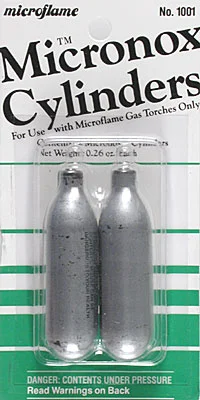

      alternate canister text has “Made in Japan” below red line and “MICROFLAME” as one word

MICRONOX CANISTER- GREEN

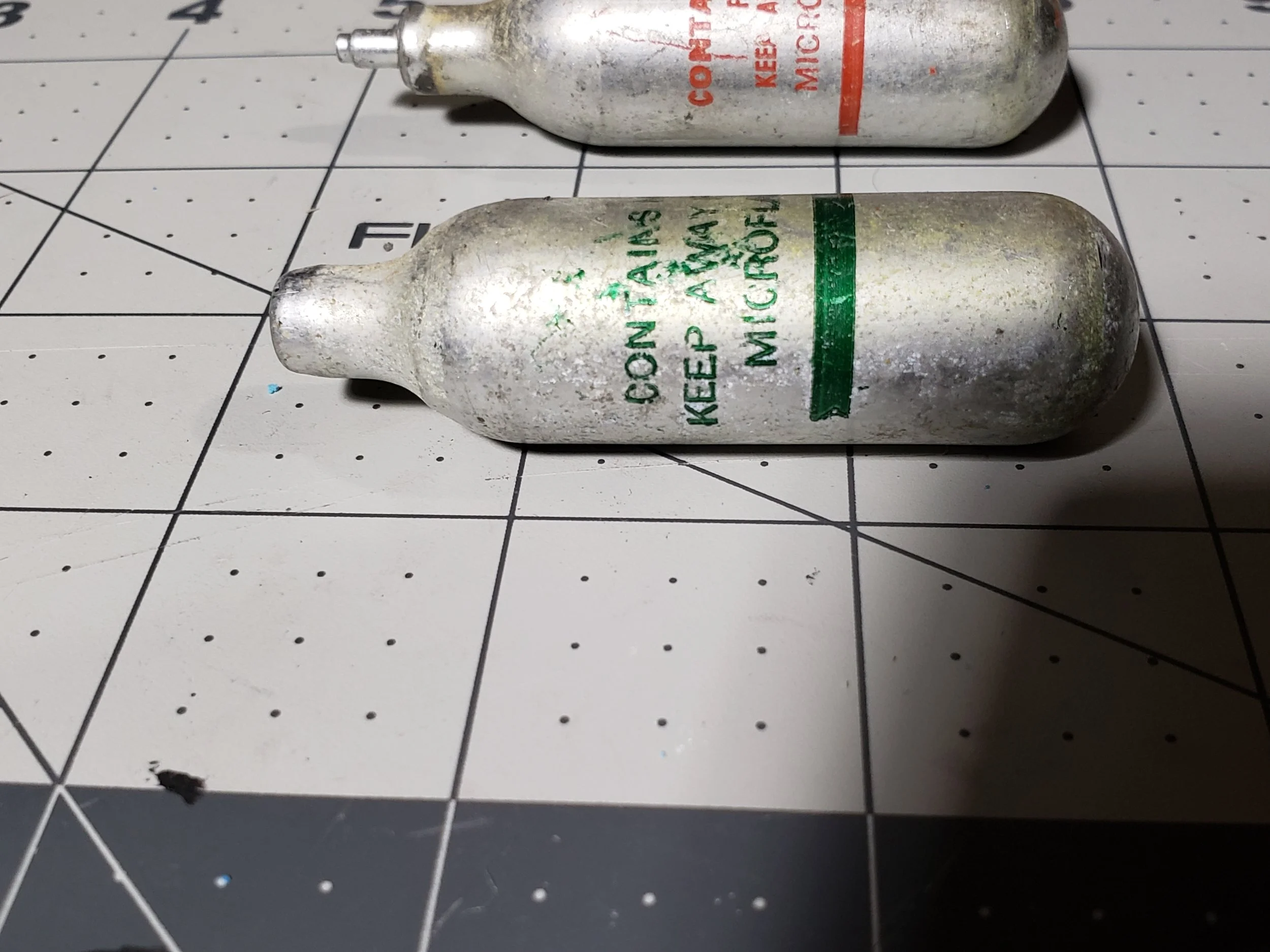

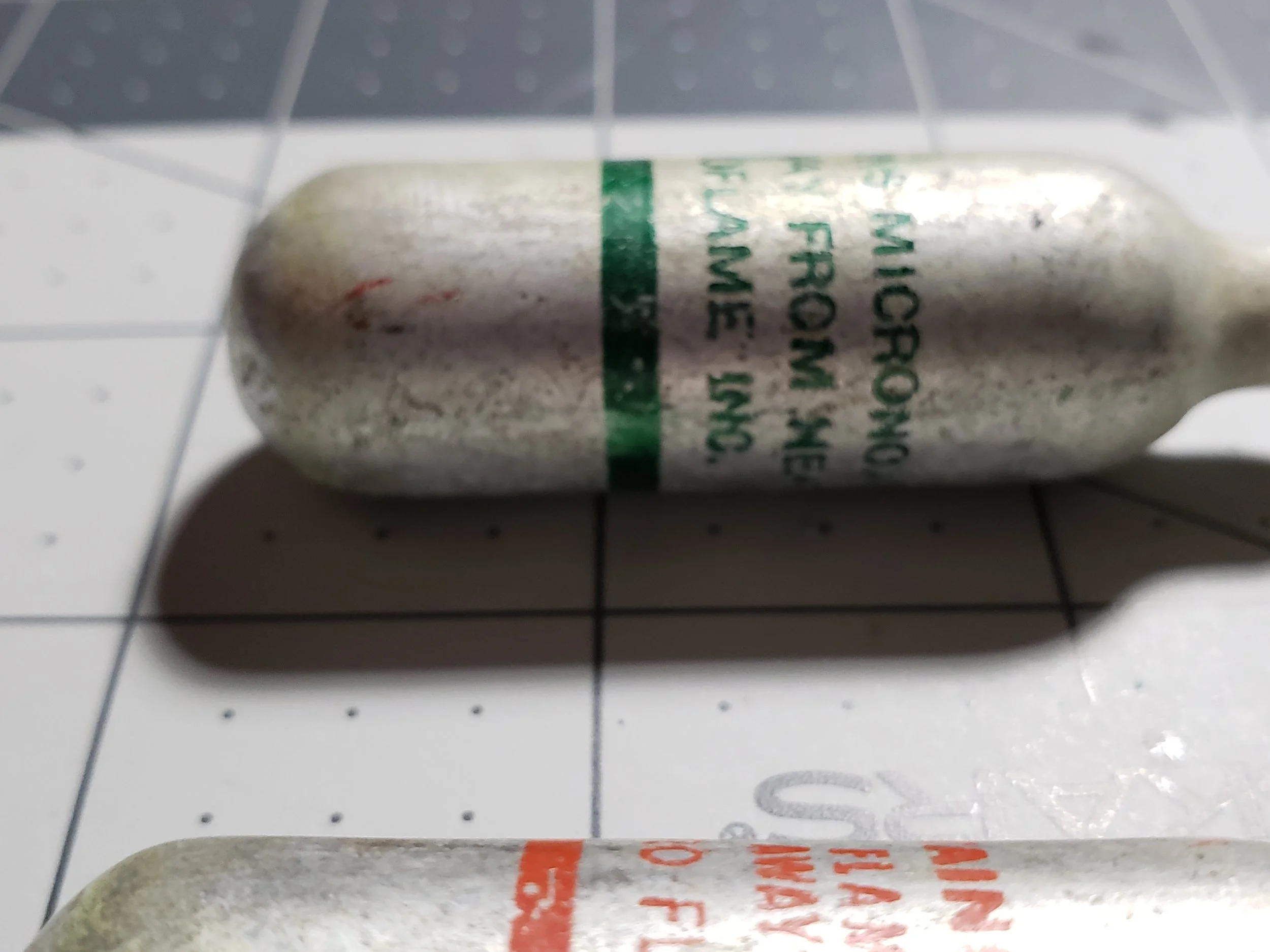

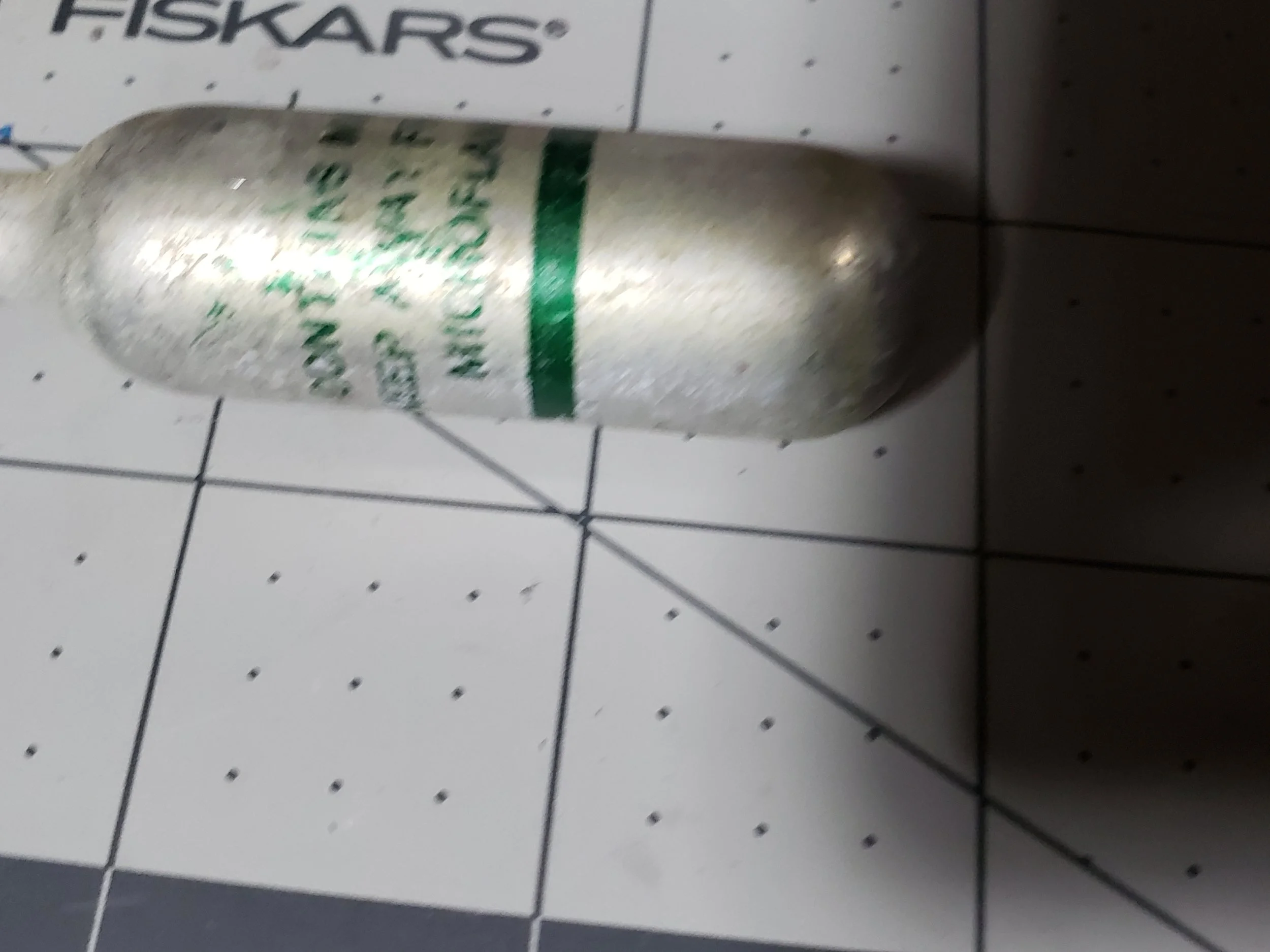

  • Green Text:

    • Contains Micronox

    • Keep Away From Heat

    • Micro Flame Inc.

    • Solid green line

  • Alternate canisters are solid silver ( no text)

  • Alternate canister larger green text, no line & alternate wording of

    • MICRONOX CYLINDER

    • D A N G E R

    • _____ NOT HEAD OVER

    • ___ F. FOR USE IN

    • MICROFLAME TORCH

    • ONLY! 09088


Microflame Torch Research

A collection of similar torches available 1970s & 1980s

NUMBER IN BRACKETS [] IS FOR REFERENCE ON THIS SITE ONLY- NOT RELATED TO PART# ETC.


Microflame Inc. History

Real World Application

These models took a butane cylinder and a “Micronox” cylinder aka compressed nitrous oxide to heat up to 5000 F pinpoint flame.

Patent

June 28, 1962 - US3246849A

The Miniature torch patent US 3246849A April 14, 1966 by Leonard E. Laske of Minneapolis, Minnesota.

Microflame Inc.

United States Word Trade Mark

  • Azure Moon Trading Corp. 05/24/1963 (Application) 06-14-1966 (Registration) - small gas torches - Heating, lighting and ventilating apparatus

    • Serial #72169654

    • 20 Commerce Park Northsuite 101, Bedford, NH 03110

    • Andrew S. Ehard, Merchant & Gould P.C., P.O. Box 2910 Minneapolis, MN 55402-0910

RadioShack a Tandy Corporation Company

Archer was a Trademark of the Tandy Corporation Fort Worth Texas and owners of Radio Shack January 4, 1979


Microflame & Archer Torch Research

Microflame Torch (arched text)

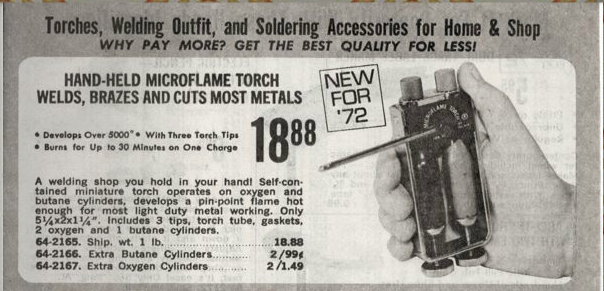

  • Radio Shack [RS] 1972-1973

    • Torch Item # 64-2165

    • Butane Cylinder Item # 64-2166

    • Oxygen Cylinder Item # 64-6167

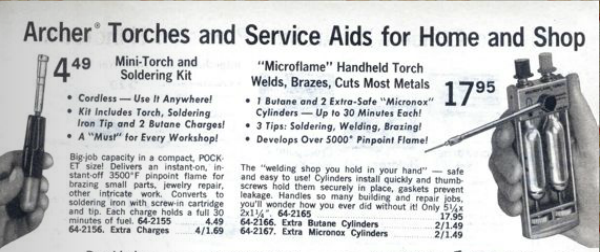

Microflame Torch (standard/unmarked)

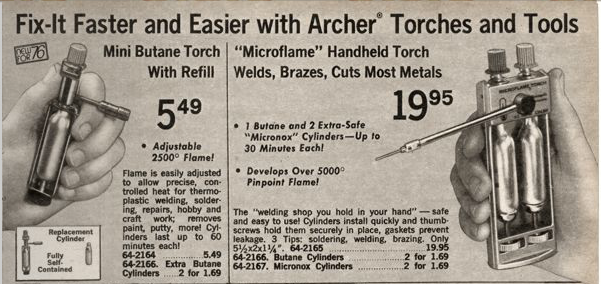

  • Radio Shack [RS] 1974-1976

    • Torch Item # 64-2165

    • Butane Cylinder Item # 64-2166

    • Micronox Cylinder Item # 64-6167

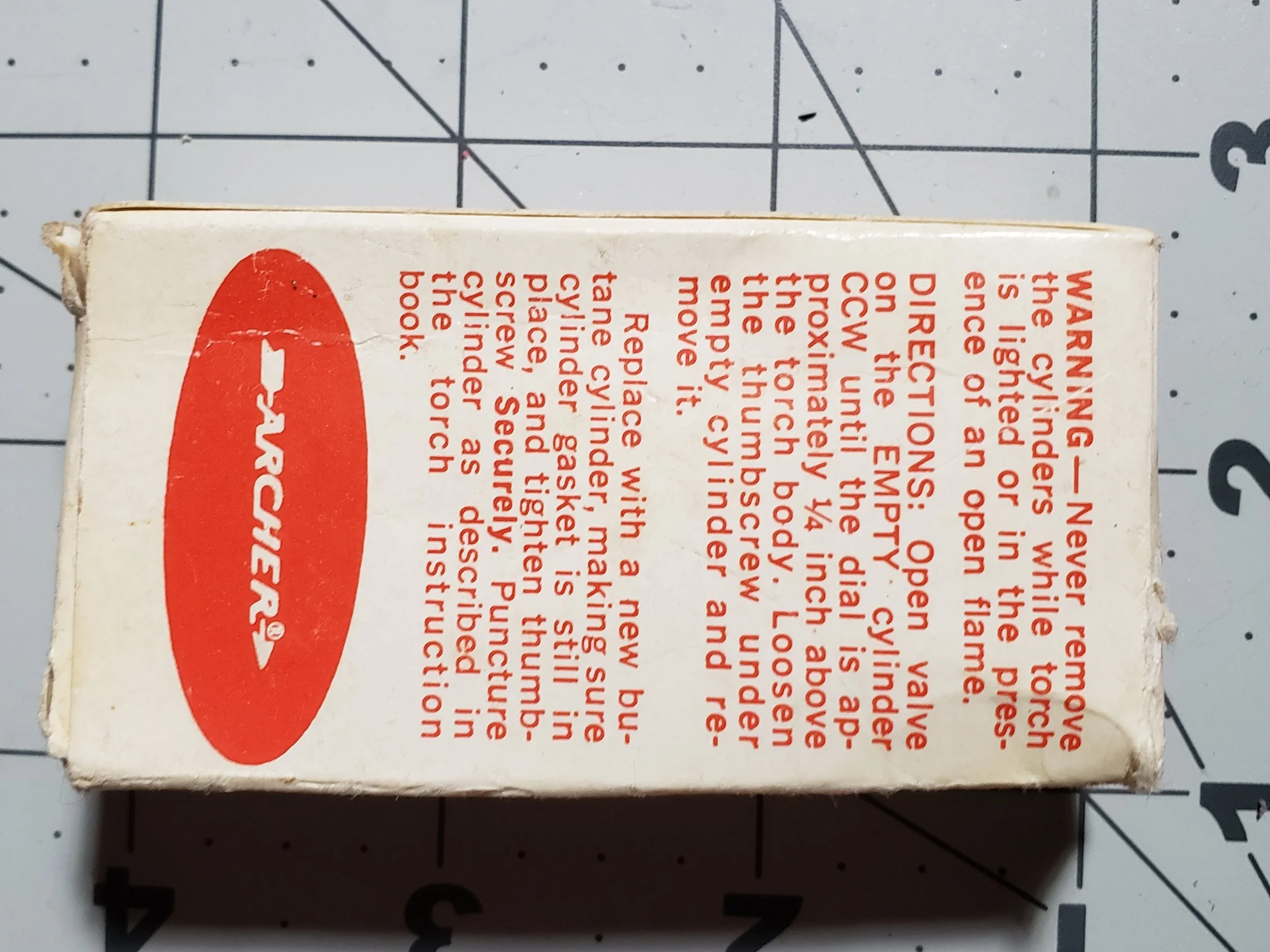

  • Packing Images

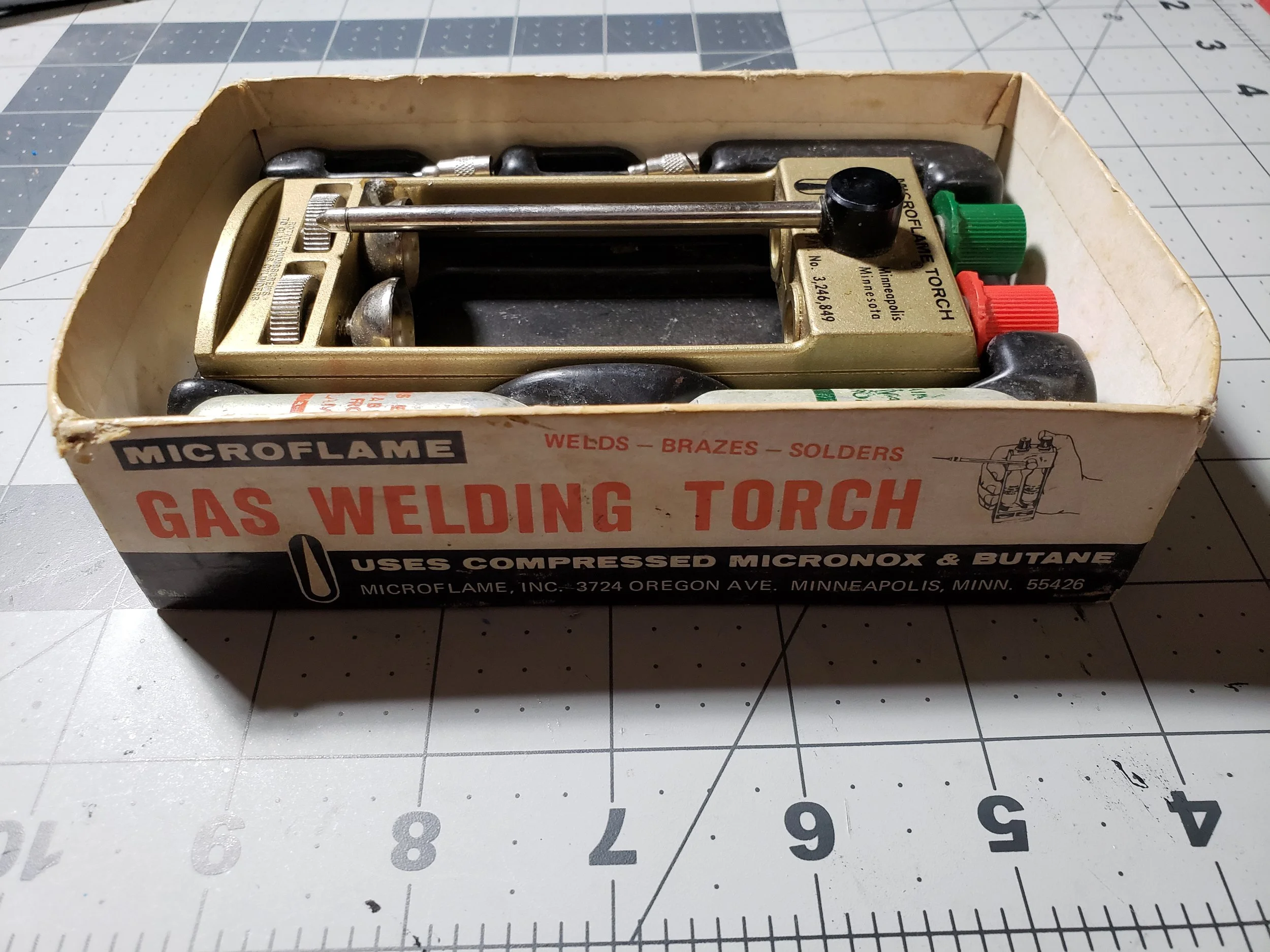

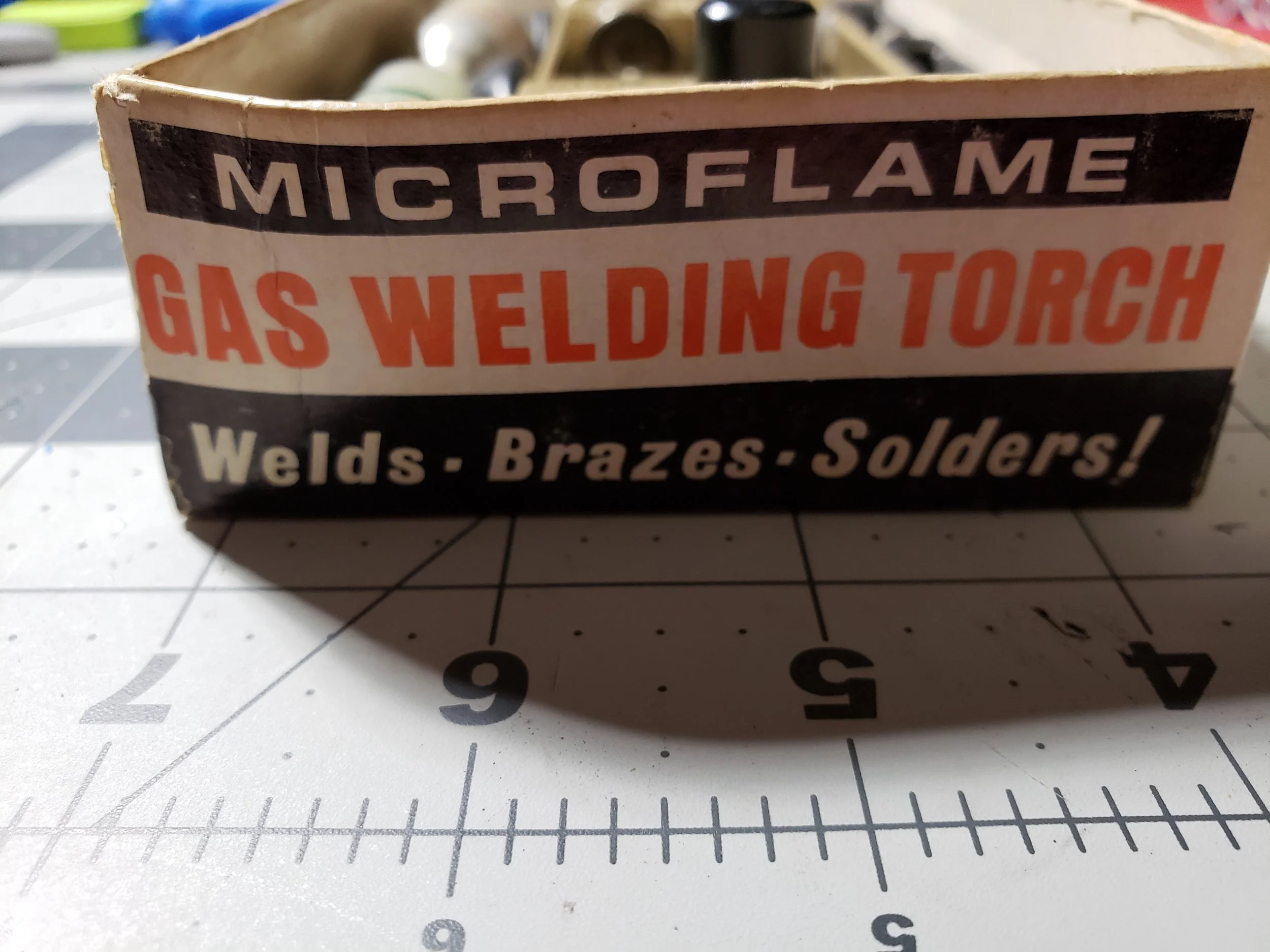

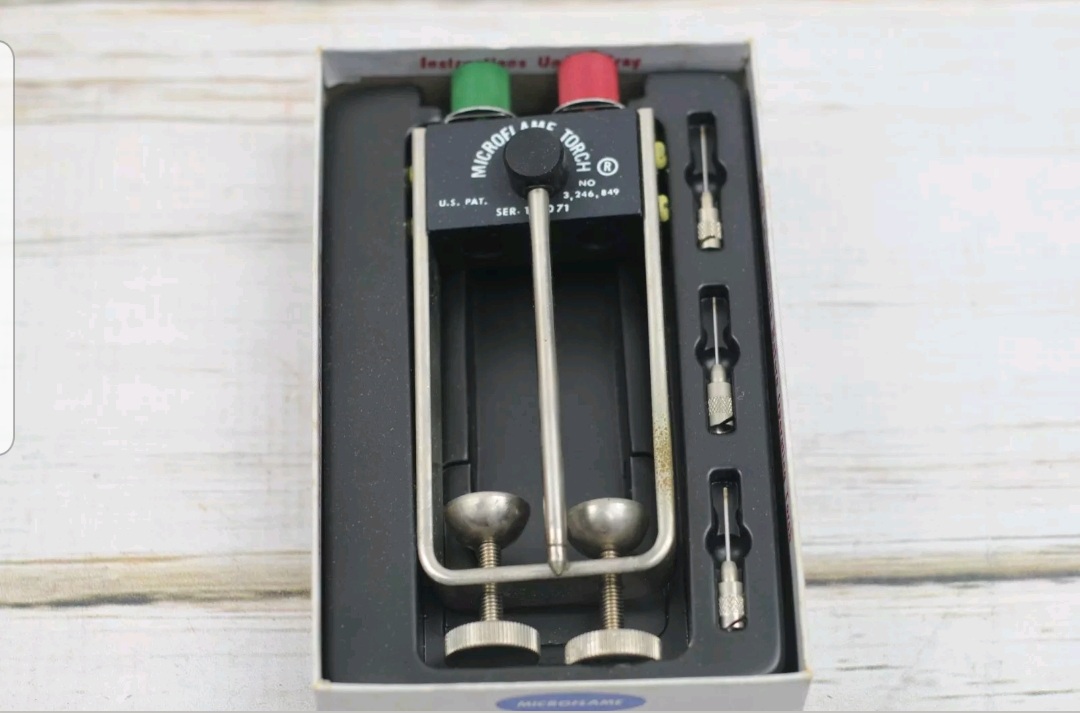

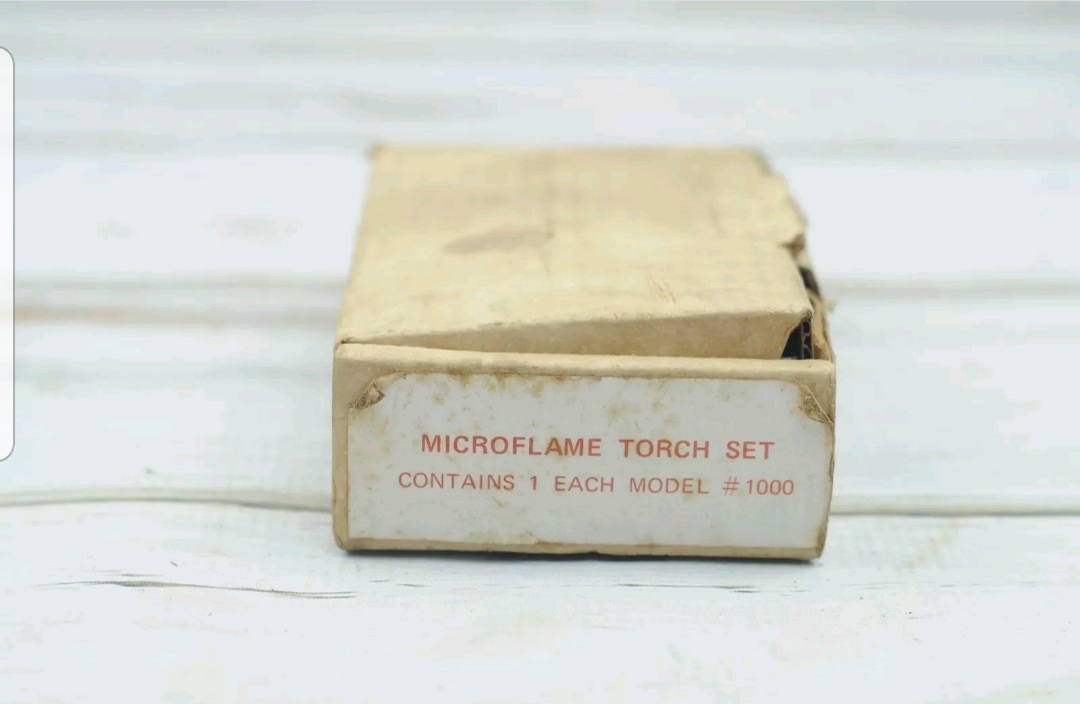

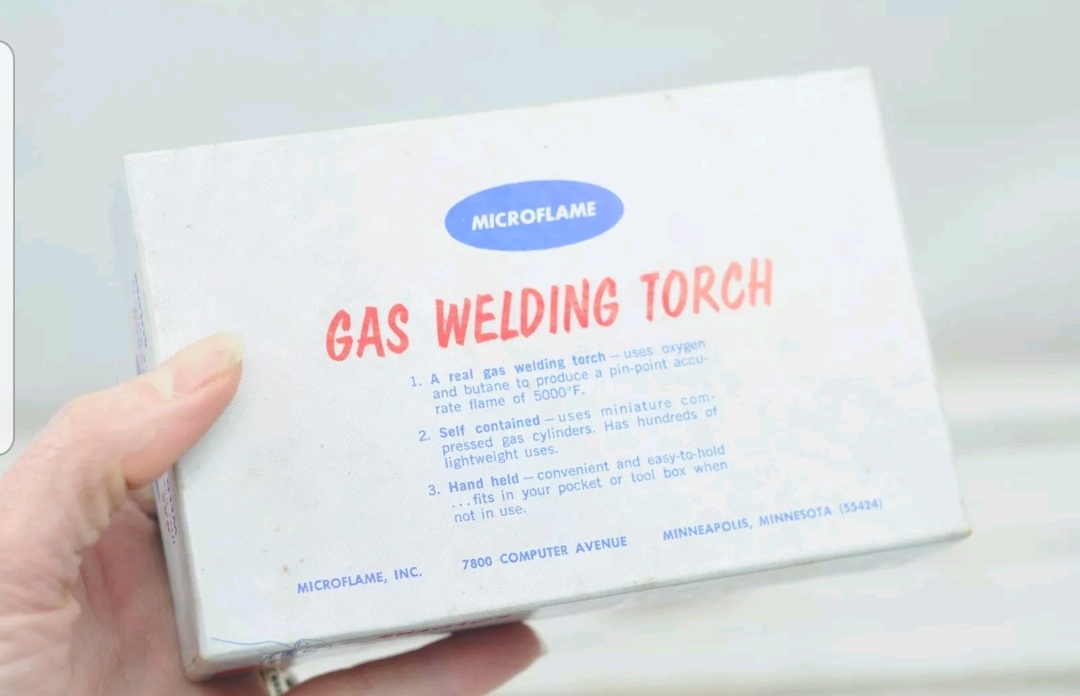

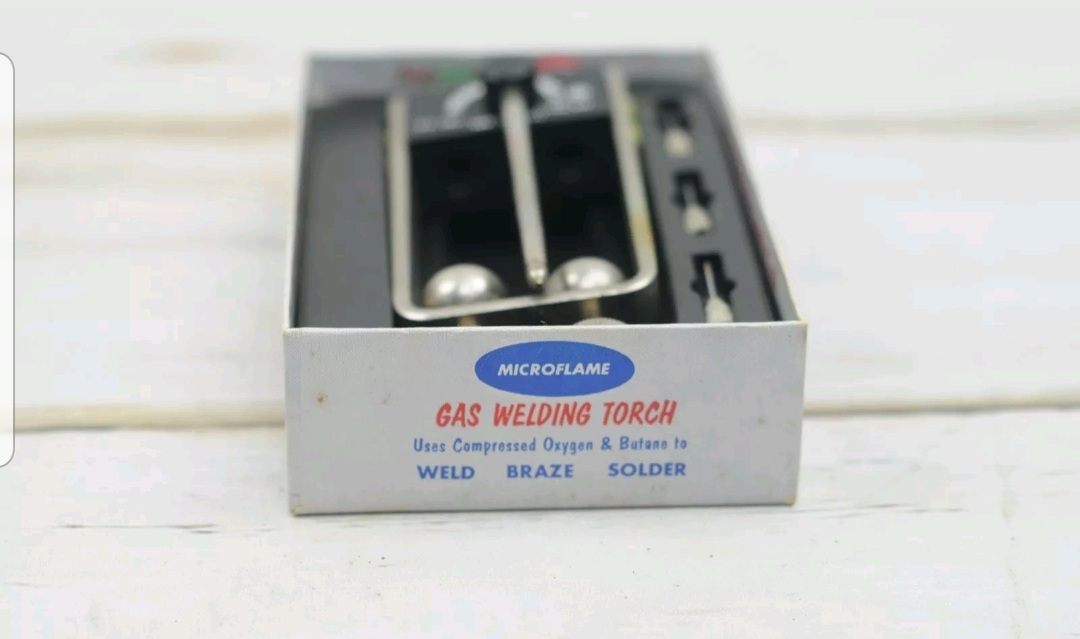

    • Kit Box: Microflame Gas Torch 4400

    • Small Box: Model 1000

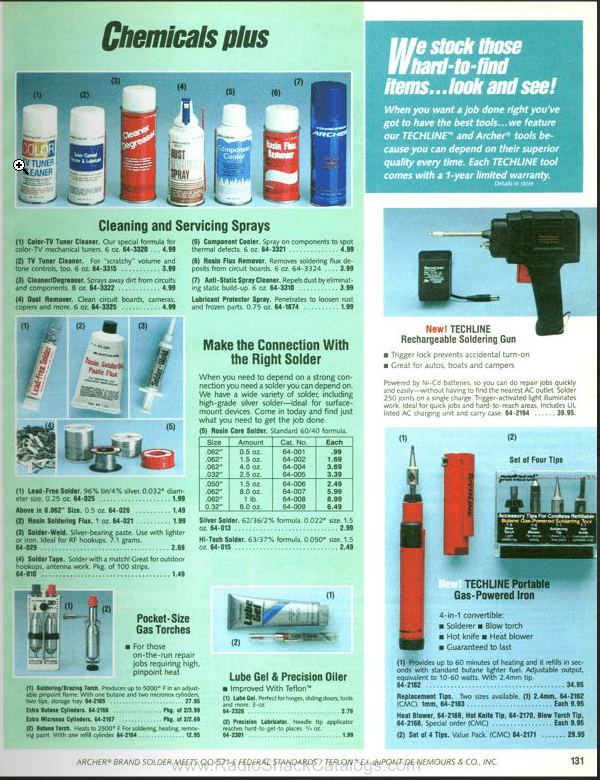

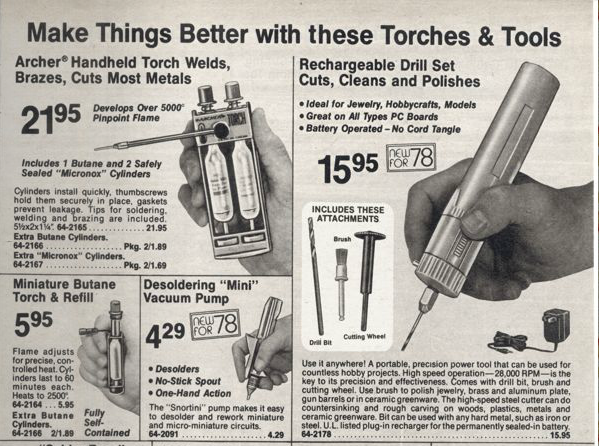

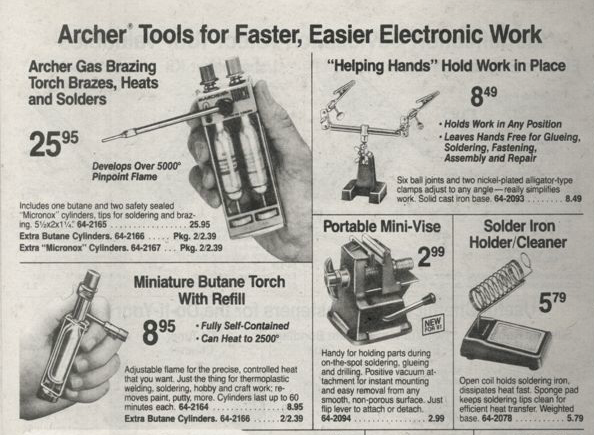

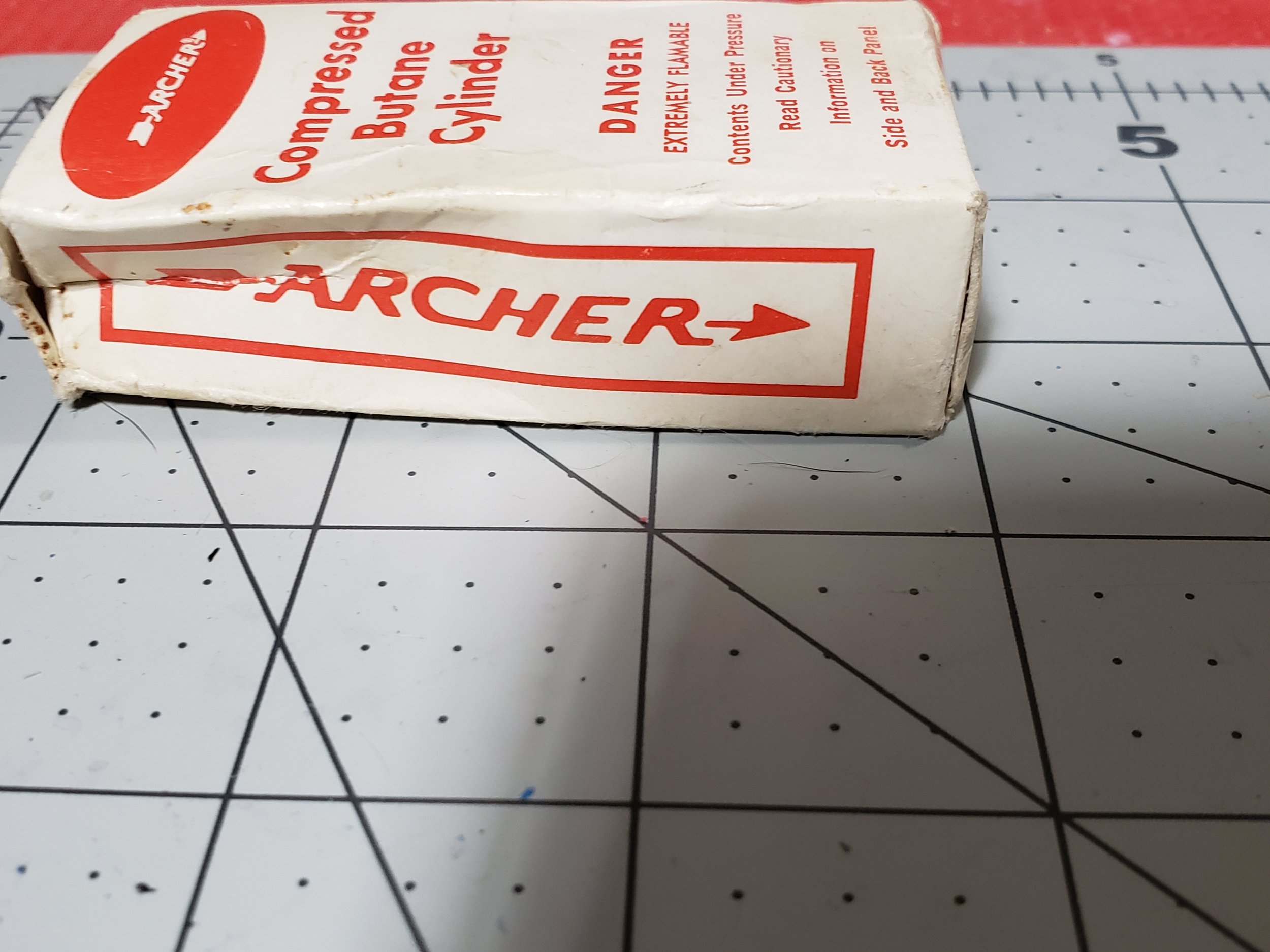

Archer Torch [RS]

  • Radio Shack [RS] 1977-1982

    • Same item #s as above

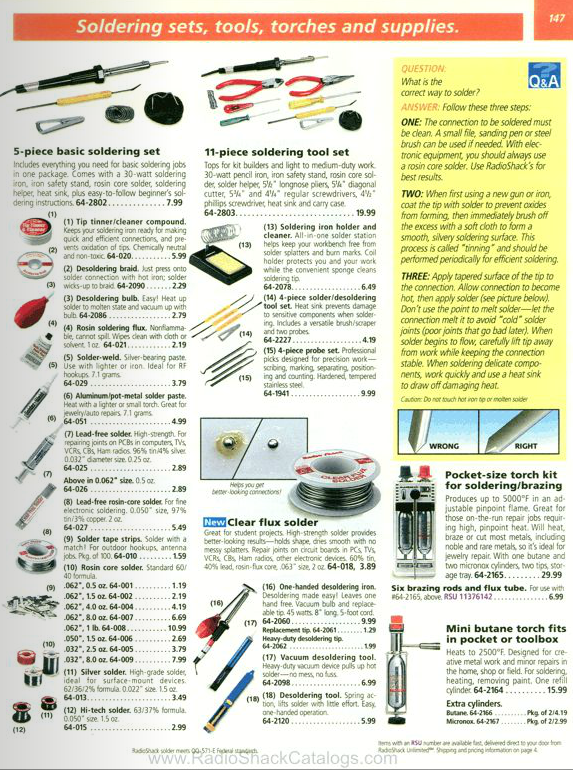

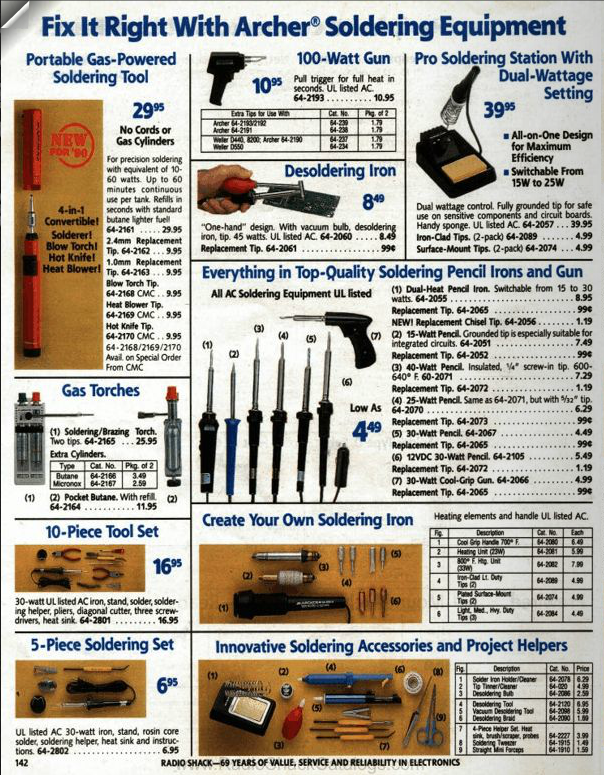

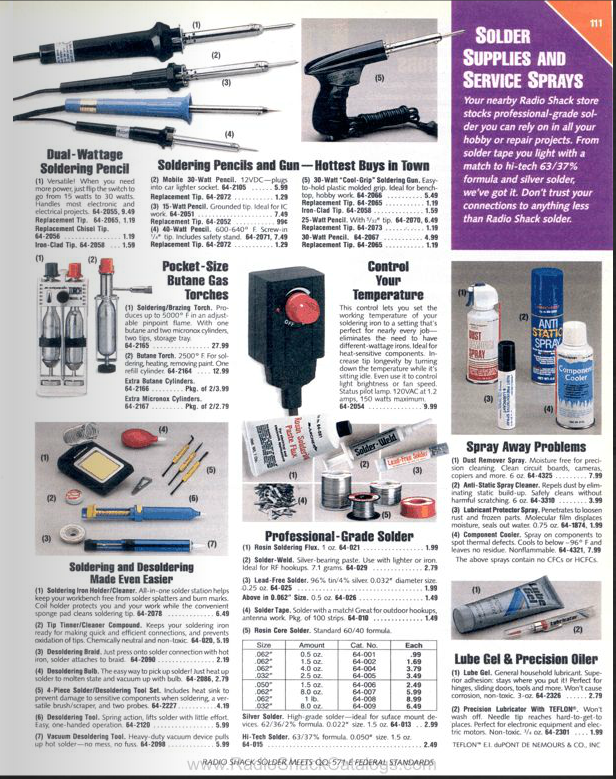

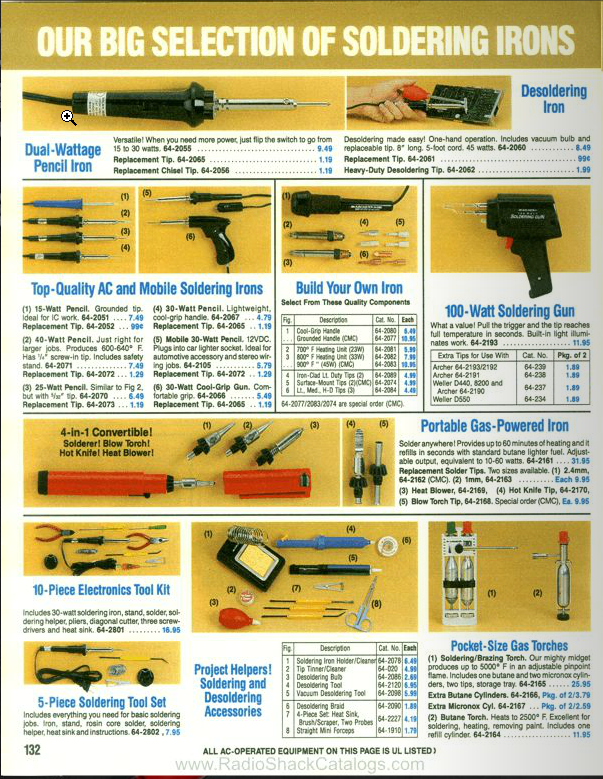

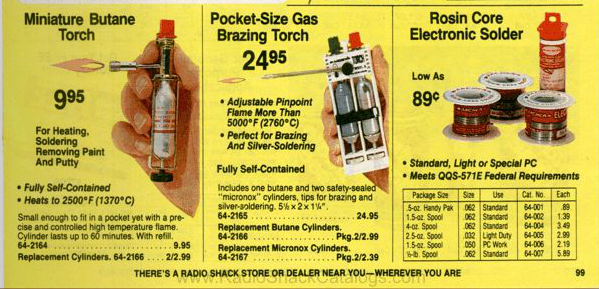

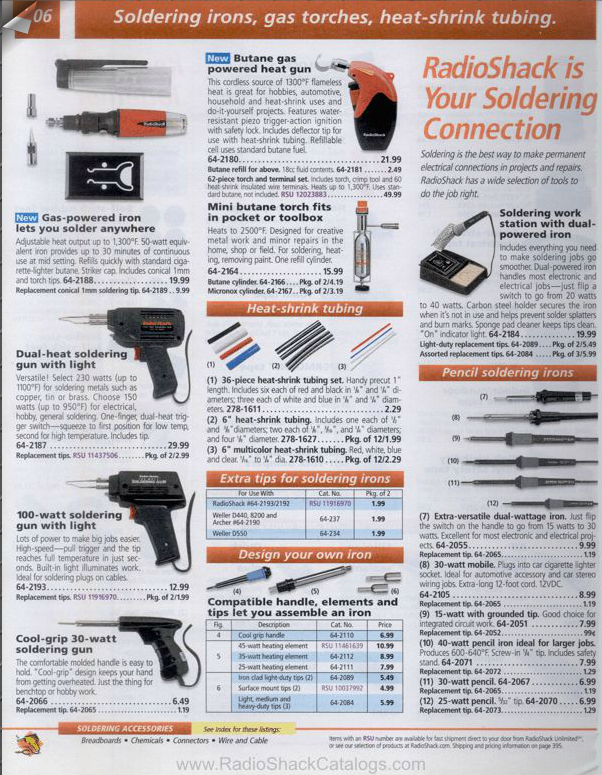

Archer Torch Model-B

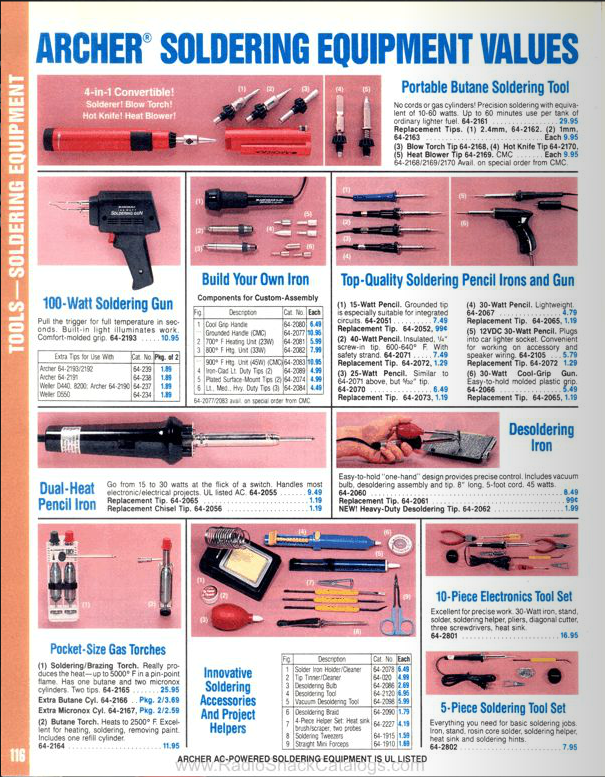

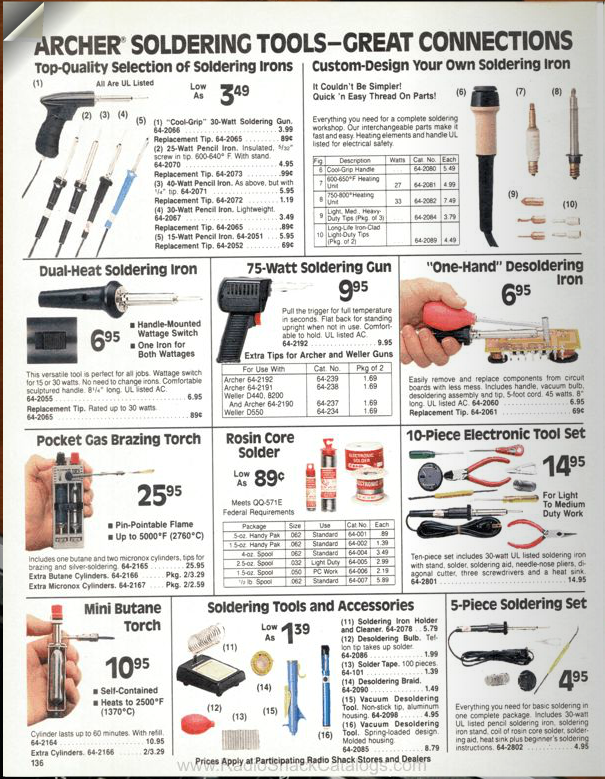

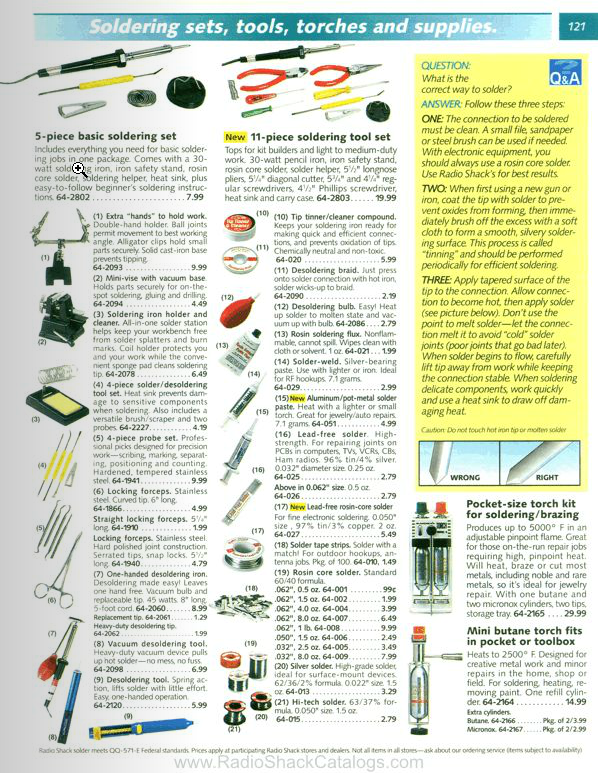

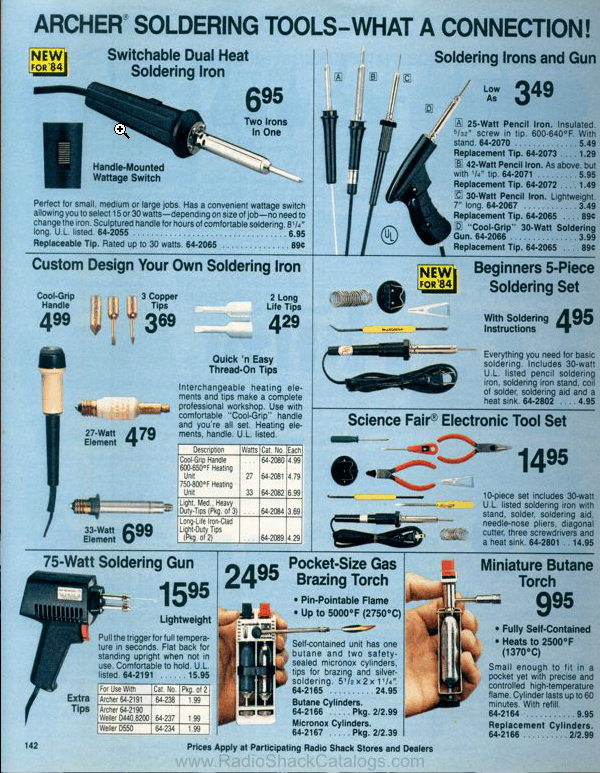

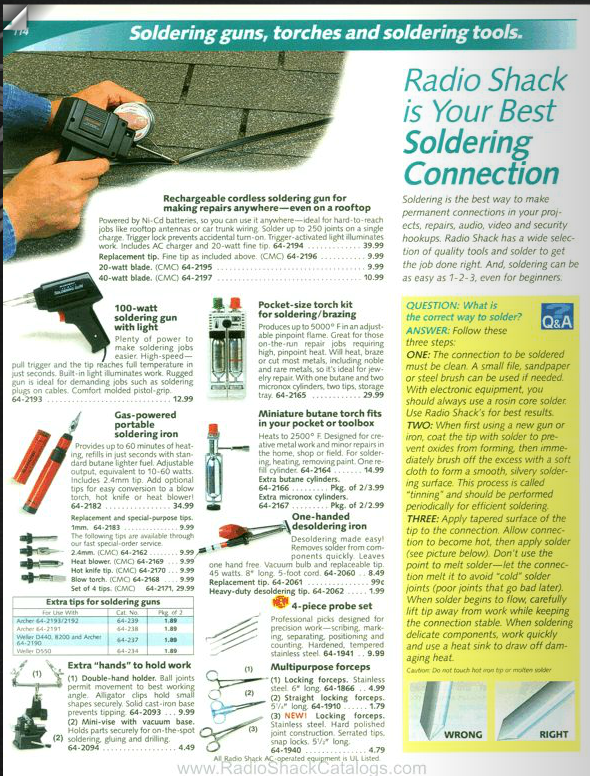

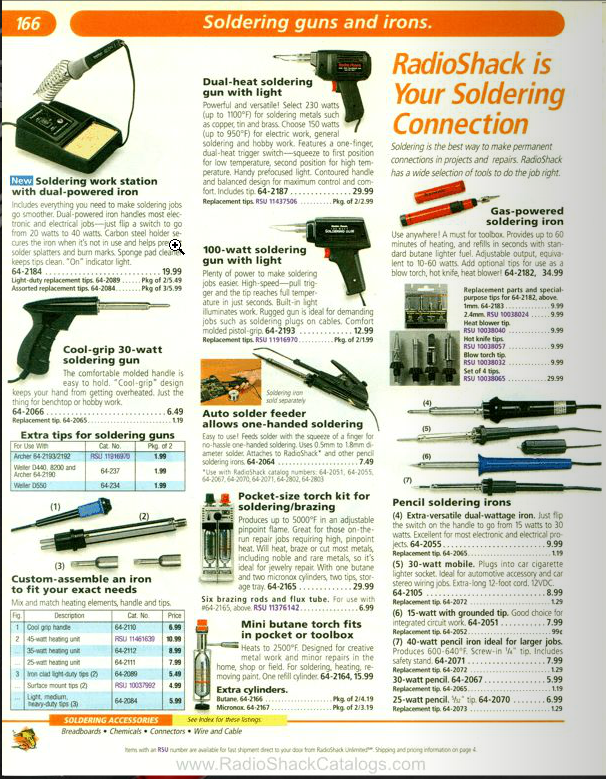

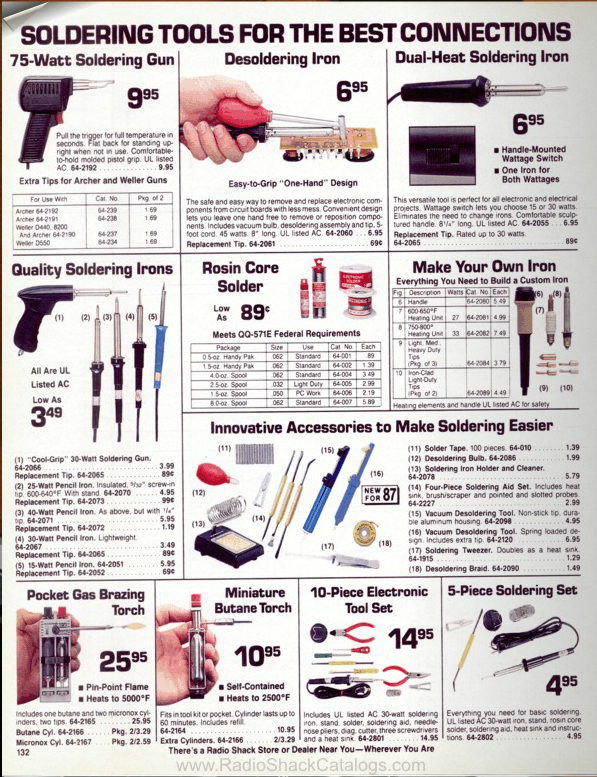

  • Radio Shack 1983-1988, 1990-1999 [RS]

  • Same item #s as above

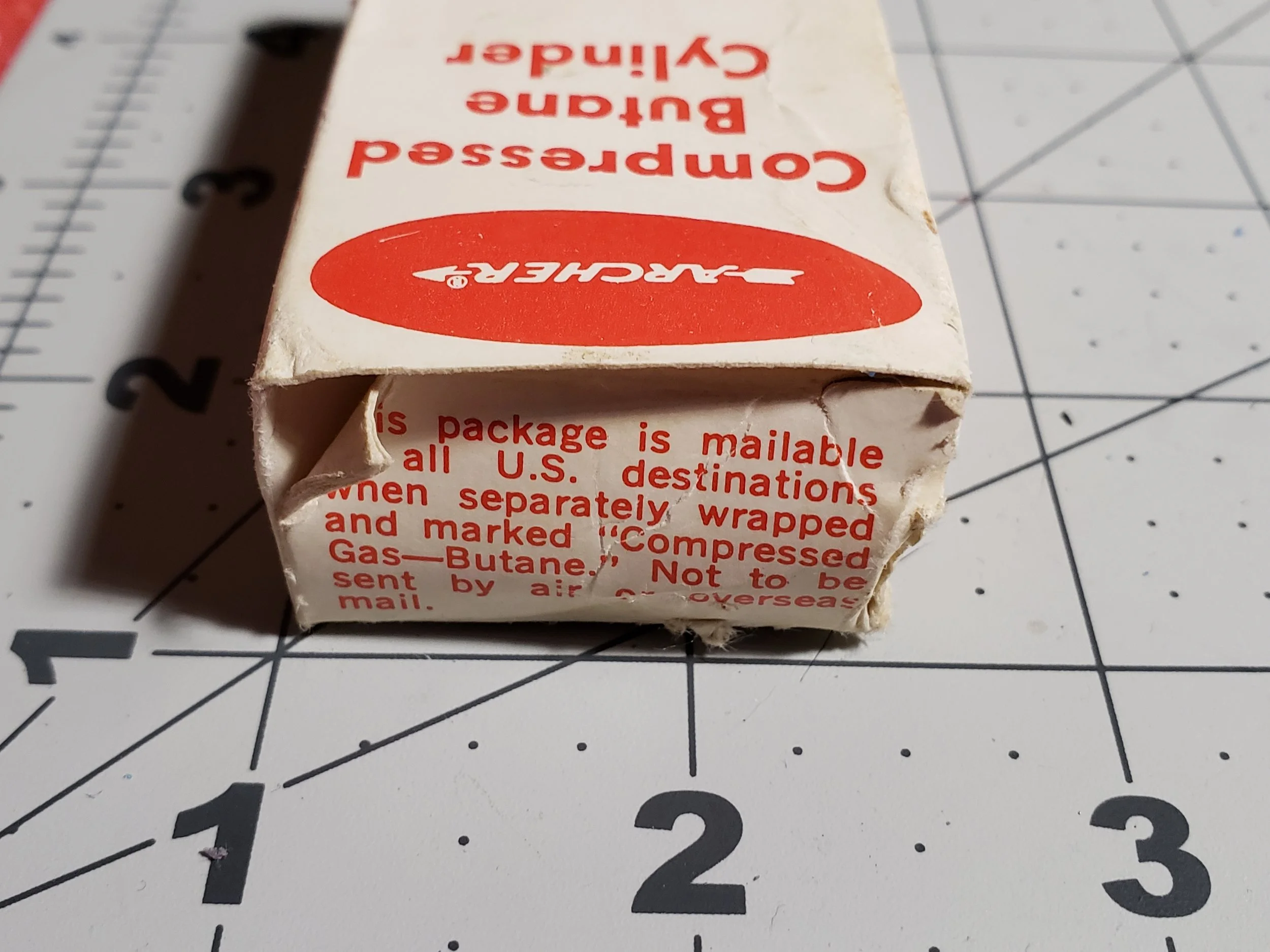

  • Packing Images

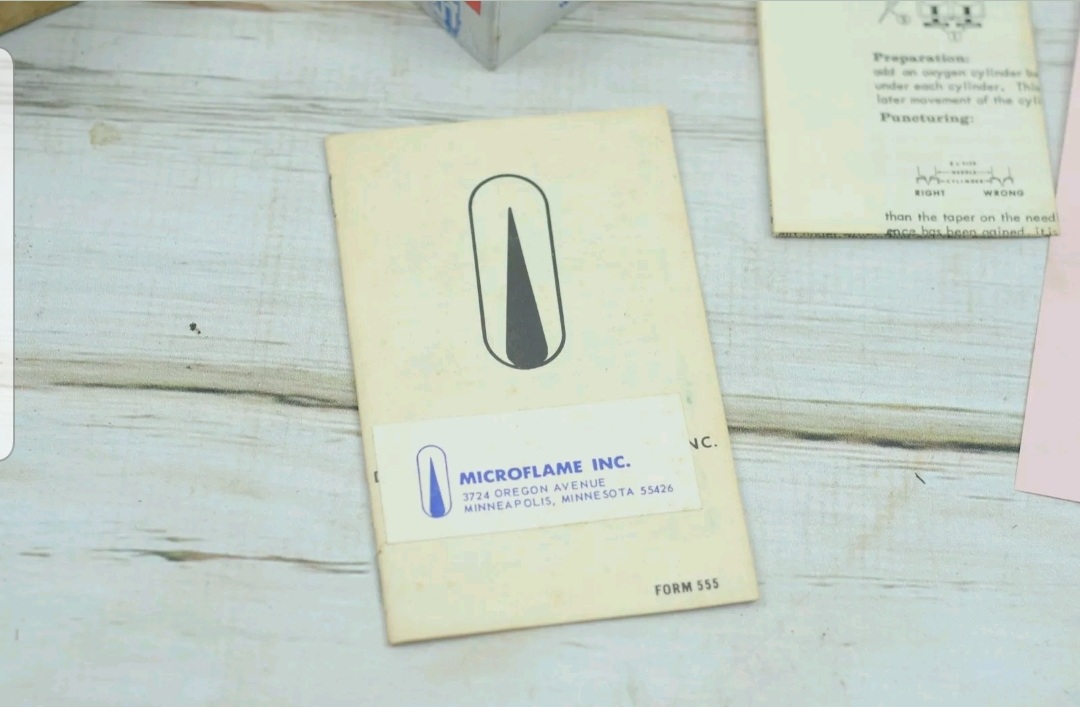

    • Booklet: #89 4-83 Rev. B

NewScientist Magazine 1956 - Australia, Canada, Germany, New Zealand, U.S.A., Malaysia

New Scientist Ltd. United Kingdom

  • Microflame (curved text) 7/26/1979

  • Microflame Miniature Torch Standard/Unmarked February, April., August, October 1981

RadioShack & Tandy Corp

  • A Tandy Corporation Company 1919

  • RadioShack Corporation 1921

  • Tandy Corp. purchased part of bankrupt Radio Shack in 1962

  • Acquired by UK Kensignton Capital Holdings in 2017 via bankruptcy

  • RadioShack bought back Tandy brand 2017

  • RadioShack partnered with HobbyTown USA to open 100 “express” stores

UPC Information

UPC Lookup Database

UPC-A: 0 32092 04400 6

EAN-13: 0 032092 044006

  1. Microflame Gas Welding Torch Kit 4400 - Vintage

  2. Vintage Microflame 4400 Butane Gas Welding Torch Kit

Reference:

https://patents.google.com/patent/US3246849

https://trademark.trademarkia.com/archer-73198984.html

http://www.partsofsw.com/micweld.htm

http://www.ebay.com current/past items for sale

http://www.worthpoint.com current/past items for sale

https://hazard.com/msds/files/brj/brjkt.html Leland Limited, Inc.

https://www.radioshackcatalogs.com

https://www.giantbomb.com/tandy-corporation/3010-1602/

https://www.upcitemdb.com/upc/32092044006 via Ebay listings sold

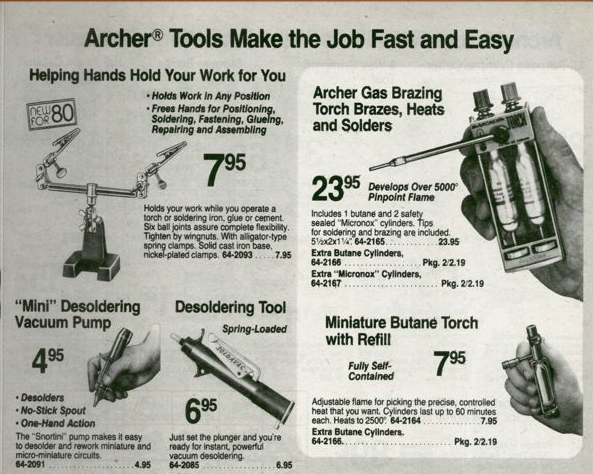

RETAIL ADVERTISEMENTS
